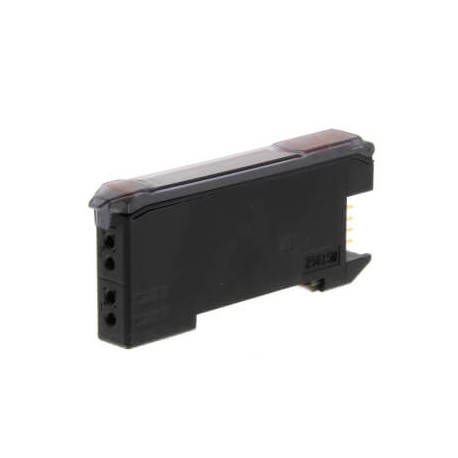

OMRON E3X-MDA8 E3X-MDA8 323856 E3XMDA8OMS OMRON Dual display dc 3 PNP Teach 2 fibers Connector View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E3X-MDA8 323856 E3XMDA8OMS OMRON Dual display dc 3 PNP Teach 2 fibers Connector

E3X-MDA8

323856

E3XMDA8OMS

OMRON

1 Pcs.

Dual display dc 3 PNP Teach 2 fibers Connector Fiber amplifier, 2 fiber input, AND/OR functions, 2 PNP output, connector

Automation > Optical fibre sensor / optical fibre amplifier
E3X

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron E3X-MDA8 dual display DC PNP teach 2 fibers connector serves as a specialized optical sensing amplifier used in automated assembly lines to detect part presence, orientation, or movement without physical contact. These units process light signals received from paired fiber optic cables to trigger accurate switching operations in high-speed industrial control systems.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Shape: Cuboid, rail mounting
  • Sensing method: Amplifier
  • Setting method: Teach-In
  • Connection method: System connector
  • Output type: PNP
  • Operation mode: Dark-ON, Light-ON
  • Response time: 0.130 ms
  • Material housing: Plastic
  • Power supply voltage: 12-24 V
  • Functions: Area output, Timer, Twin
  • Features: 2 channels, Twin outputs

More info

▲

Specifications

ShapeCuboid, rail mounting
Sensing methodAmplifier
Setting methodTeach-In
Connection methodSystem connector
Output typePNP
Operation modeDark-ON, Light-ON
Response time0.130 ms
Material housingPlastic
Power supply voltage12-24 V
FunctionsArea output, Timer, Twin
Features2 channels, Twin outputs
