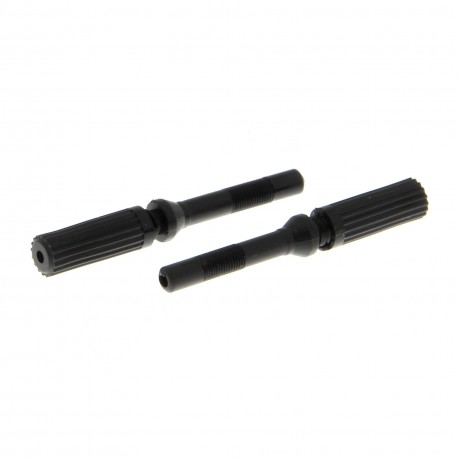

E39-F9 E39F2002R E39F9 OMRON Inserts optical fibers thin
E39-F9
E39F2002R
E39F9
OMRON
100 Pcs.
Automation > Accessories/spare parts for sensor technology
Accessories
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron E39-F9 optical fiber insert enables precise object detection in confined spaces where standard sensors cannot fit. Fiber optic inserts and cables are frequently deployed in automated assembly and packaging lines to detect small targets within high-temperature or restricted areas. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Permissible bending radius: R25
- Cut to length: Yes
- Ambient temperature: -40°C to 70°C
- Material: Head
- Fiber: PMMA
- Sheath: Polyethylene coating
- Degree of protection: IEC 60529 IP67
- Accessory (EF013236): Yes
- Spare part (EF013237): No
More info
▲Ordering information
Sensor type | Sensing height | Sensing distance (in mm) | Order code | ||||
|---|---|---|---|---|---|---|---|
Standard fiber | High-flex fiber | Standard fiber | High-flex fiber | ||||
E3X-HD | E3NX-FA | E3X-HD | E3NX-FA | ||||
10 | 4000 | 4000 | - | - | E32-T16 | - | |
11 | 2200 | 3300 | 1700 | 2550 | E32-T16P | E32-T16PR 2M | |
30 | 3600 | 4000 | 2600 | 3900 | E32-T16W 2M | E32-T16WR 2M | |
50 | - | - | 3000 | 4000 | - | E32-ET16WR-2 2M | |
70 | - | - | 3500 | 4000 | - | E32-ET16WR-1 2M | |
11 | 2000 | 3000 | 1500 | 2200 | E32-T16J 2M | E32-T16JR 2M | |
4 × seperate M3 heads | 1300 | 1900 | - | - | E32-M21 | - | |
11 | - | - | 300 | 450 | - | E32-D36P1 2M | |
Specifications
Item | Standard | High-flex | |||||
|---|---|---|---|---|---|---|---|
E32-T16 | E32-M21 | E32-T16J E32-T16P E32-T16W | E32-D36P1 | E32-ET16WR-1 E32-ET16WR-2 | E32-T16JR E32-T16PR E32-T16WR | ||
Permissible bending radius | R25 | R10 | R4 | R1 | |||
Cut to length | Yes | ||||||
Ambient temperature | -40°C to 70°C | ||||||
Material | Head | ABS | Stainless steel | ABS | Brass-nickel plated | Aluminium | ABS |
Fiber | PMMA | ||||||
Sheath | Polyethylene coating | PVC coating | Polyethylene coating | PVC coating | |||
Degree of protection | IEC 60529 IP67 | IEC 60529 IP50 | IEC 60529 IP54 | IEC 60529 IP50 | |||
1.Sensing distance measured with Standard mode
2.Sensing area aligned to top of housing.
