FCB-10-HSL-SM AA051042M FCB10HSLSM OMRON Extension cable for CCS-24 V lighting, 10 m
FCB-10-HSL-SM
AA051042M
FCB10HSLSM
OMRON
1 Pcs.
Automation > Accessories/spare parts for sensor technology
Special
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron FCB-10-HSL-SM extension cable routes power and control signals reliably between machine vision lighting controllers and compatible LED illuminators. Extension cables of this type maintain signal integrity across extended distances in complex factory automation layouts.
Specific pricing, availability and lead time are confirmed per enquiry through an RFQ.
- 3 (Semi-conductors): 2 (Semi-conductors)
- Spring-cage terminals: G9SX-SM032-RC
- Rated supply voltage: 24 VDC
- Input voltage: Standstill detection input (Z1-Z2/Z3-Z4) AC 415 Vrms + 10% max.
- Maximum power supply frequency for AC induction motor: 60 Hz max.
- Internal impedance: Standstill detection input: approx, 660 k Ω EDM input: approx. 2.8 k Ω
- Safety standstill detection output: Sourcing output (PNP) Load current: 300 mA DC max.
- Auxiliary output: Sourcing output (PNP) Load current: 100 mA DC max.
More info

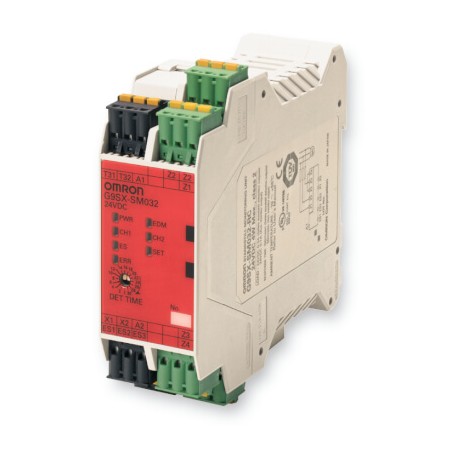

▲Standstill monitoring unit with solid state outputs
Safe Standstill monitoring unit based on Back EMF operation for two- and three phase systems.
- Ready to use - covering all standard applications without additional setup
- Easy integration in star- and delta wiring
- Clear LED diagnosis of all in- and outputs
- Applicable up to Category 4 acc. EN 954-1
Ordering information
Safety standstill monitoring unit
Safety outputs | Auxiliary outputs | Power input Rated supply voltage | Terminal block type | Order code |
|---|---|---|---|---|
Instantaneous | ||||
3 (Semi-conductors) | 2 (Semi-conductors) | 24 VDC | Screw terminals | G9SX-SM032-RT |
Spring-cage terminals | G9SX-SM032-RC |
Specifications
Ratings of standstill monitoring unit
Power input
Item | G9SX-SM032-_ |
|---|---|
Rated supply voltage | 24 VDC |
Inputs
Item | G9SX-SM032-__ |
|---|---|
Input voltage | Standstill detection input (Z1-Z2/Z3-Z4) AC 415 Vrms + 10% max. |
Maximum power supply frequency for AC induction motor | 60 Hz max. |
Internal impedance | Standstill detection input: approx, 660 kΩ EDM input: approx. 2.8 kΩ |
Outputs
Item | G9SX-SM032-_ |
|---|---|
Safety standstill detection output | Sourcing output (PNP) Load current: 300 mA DC max. |
Auxiliary output | Sourcing output (PNP) Load current: 100 mA DC max. |
Application example
3-phase motor
3-phase motor with star-delta wiring
1.PNP transistor output
