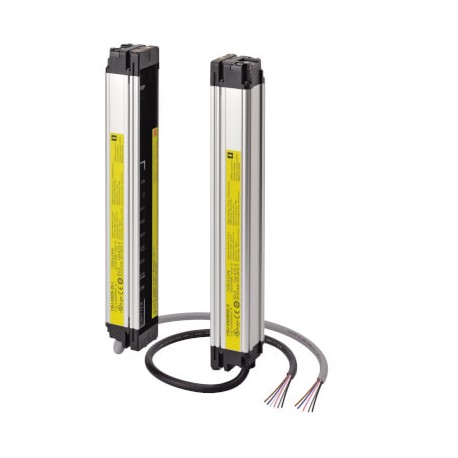

OMRON F3SJ-E1105P25 F3SJ-E1105P25 F3SE0013M F3SJE1105P25 OMRON Class IV Basic Hand 1105mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SJ-E1105P25 F3SE0013M F3SJE1105P25 OMRON Class IV Basic Hand 1105mm

F3SJ-E1105P25

F3SE0013M

F3SJE1105P25

OMRON

1 Pcs.

Class IV Basic Hand 1105mm Safety Light Curtain, F3SJ Easy, Type 4, 25mm resolution, range 0.2 to 7.0m, height 1105mm, PNP

Automation > Light curtain
F3SJ-A and MS Barriers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Class IV Basic Hand 1105mm (part number F3SJ-E1105P25) acts as an essential safety light curtain utilized in manufacturing plants to establish secure operating zones around presses, assembly stations, and material handling equipment. The system interrupts power to potentially dangerous mechanisms the moment its optical path is broken. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP65
  • Type of safety according to IEC 61496-1 (EF004105): 4
  • Type of electric connection (EF003961): Cable
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): No
  • With muting function (EF004057): No
  • Suitable for safety functions (EF001597): Yes
  • With beam coding (EF004114): No
  • Fade-out possible (EF003955): No
  • Max. output current at protected output (EF004035): 200 mA
  • Number of protected contact energized outputs (EF003952): 0
  • Safety field height (EF004103): 1105 mm
  • Wavelength of the sensor (EF004132): 880 nm
