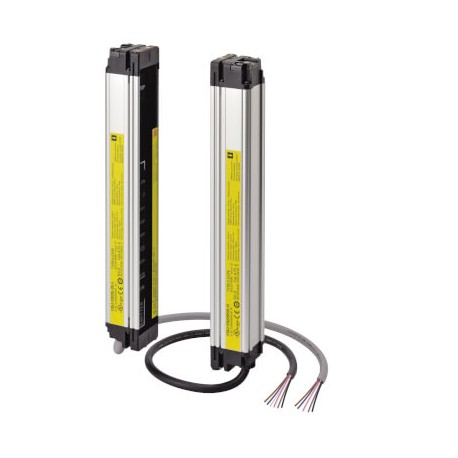

OMRON F3SJ-E1025P25 F3SJ-E1025P25 F3SE0012B F3SJE1025P25 OMRON Class IV Basic Hand 1025mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SJ-E1025P25 F3SE0012B F3SJE1025P25 OMRON Class IV Basic Hand 1025mm

F3SJ-E1025P25

F3SE0012B

F3SJE1025P25

OMRON

1 Pcs.

Class IV Basic Hand 1025mm Safety Light Curtain, F3SJ Easy, Type 4, 25 mm resolution, range 0.2 to 7.0 m, height 1025 mm, PNP

Automation > Light curtain
F3SJ-A and MS Barriers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron class IV basic hand safety curtain (F3SJ-E1025P25) provides reliable perimeter safeguarding across industrial processing equipment and automated assembly lines. Such safety light curtains monitor access zones to shut down mechanical hazards the moment an operator reaches too far. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP65
  • Type of safety according to IEC 61496-1 (EF004105): 4
  • Type of electric connection (EF003961): Cable
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): No
  • With muting function (EF004057): No
  • Suitable for safety functions (EF001597): Yes
  • With beam coding (EF004114): No
  • Fade-out possible (EF003955): No
  • Max. output current at protected output (EF004035): 200 mA
  • Number of protected contact energized outputs (EF003952): 0
  • Safety field height (EF004103): 1025 mm
  • Wavelength of the sensor (EF004132): 880 nm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
