View larger
Images are for illustrative purposes only. Please refer to data sheet for details

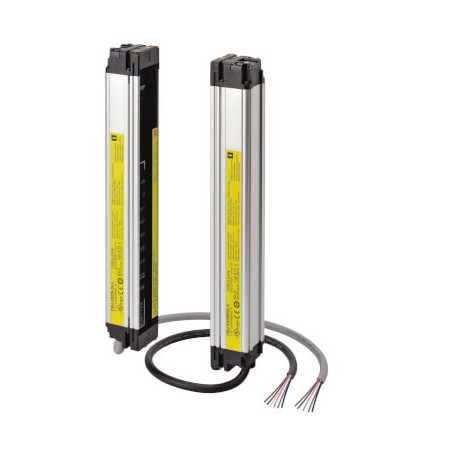

F3SJ-E0865P25 F3SE0010F F3SJE0865P25 OMRON Class IV Basic Hand 865mm
F3SJ-E0865P25
F3SE0010F
F3SJE0865P25
OMRON
1 Pcs.
Class IV Basic Hand 865mm
Safety Light Curtain, F3SJ Easy, Type 4, 25mm resolution, range 0.2 to 7.0m, height 865mm, PNP
Automation > Light curtain
F3SJ-A and MS Barriers
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Type of switching output of the OSSD (EF003959) | PNP |
| Scope of delivery of the one-way system (EF004032) | Transmitter and receiver |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP65 |
| Type of safety according to IEC 61496-1 (EF004105) | 4 |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Cable |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Explosion safety category for gas (EF003997) | None |
| Cascadable (EF000507) | No |
| With muting function (EF004057) | No |
| With monitoring function downstream switching devices (EF004052) | No |
| Suitable for safety functions (EF001597) | Yes |
| With beam coding (EF004114) | No |
| Fade-out possible (EF003955) | No |
| Max. output current at protected output (EF004035) | 200 mA |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of semiconductor outputs with signalling function (EF003945) | 0 |
| Safety field height (EF004103) | 865 mm |
| Wavelength of the sensor (EF004132) | 880 nm |
| Detection capability for test bodies (EF003991) | 25 mm |
| Resolution of the light curtain (EF006784) | 20 mm |
| Response time (EF004094) | 15 ms |
| Number of protected semiconductor outputs (EF003951) | 2 |
| Transmission range of the safety field (EF004098) | 7 m |
| Switching voltage of OSSD at state "high" (EF004102) | 24 V |
| Width sensor (EF007094) | 30 mm |
| Height of sensor (EF007283) | 30 mm |
| Length of sensor (EF007334) | 865 mm |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Rated control supply voltage DC (EF003980) | 19.2 V |
| Ambient temperature (EF002386) | -10 °C |
