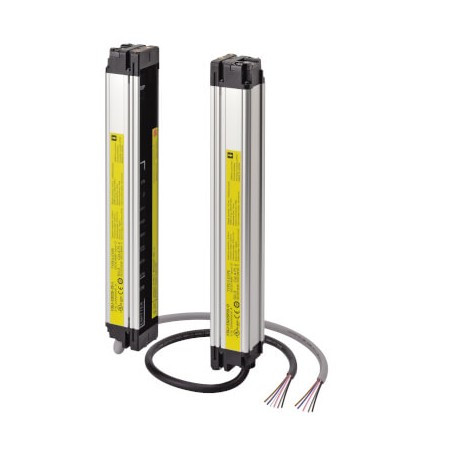

OMRON F3SJ-E0785P25 F3SJ-E0785P25 F3SE0009B F3SJE0785P25 OMRON Class IV Basic Hand 785mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SJ-E0785P25 F3SE0009B F3SJE0785P25 OMRON Class IV Basic Hand 785mm

F3SJ-E0785P25

F3SE0009B

F3SJE0785P25

OMRON

1 Pcs.

Class IV Basic Hand 785mm Safety Light Curtain, F3SJ Easy, Type 4, 25 mm resolution, range 0.2 to 7.0 m, height 785 mm, PNP

Automation > Light curtain
F3SJ-A and MS Barriers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A Class IV Basic Hand safety device (part number F3SJ-E0785P25 by Omron) is utilized in factory automation environments to safeguard operators from moving machine components by establishing a protective light grid. If the optical path is interrupted, the control system removes power to the hazard zone to prevent injuries. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP65
  • Type of safety according to IEC 61496-1 (EF004105): 4
  • Type of electric connection (EF003961): Cable
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): No
  • With muting function (EF004057): No
  • Suitable for safety functions (EF001597): Yes
  • With beam coding (EF004114): No
  • Fade-out possible (EF003955): No
  • Max. output current at protected output (EF004035): 200 mA
  • Number of protected contact energized outputs (EF003952): 0
  • Safety field height (EF004103): 785 mm
  • Wavelength of the sensor (EF004132): 880 nm
