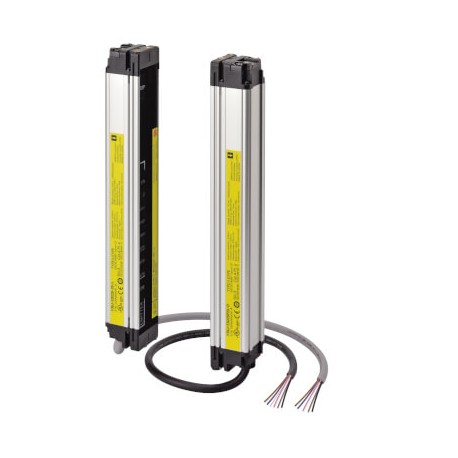

OMRON F3SJ-E0625P25 F3SJ-E0625P25 F3SE0007F F3SJE0625P25 OMRON Class IV Basic Hand 625mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SJ-E0625P25 F3SE0007F F3SJE0625P25 OMRON Class IV Basic Hand 625mm

F3SJ-E0625P25

F3SE0007F

F3SJE0625P25

OMRON

1 Pcs.

Class IV Basic Hand 625mm Safety Light Curtain, F3SJ Easy, Type 4, 25 mm resolution, range 0.2 to 7.0 m, height 625 mm, PNP

Automation > Light curtain
F3SJ-A and MS Barriers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Basic hand protection in automated environments is provided by the Omron F3SJ-E0625P25 safety light curtain, ensuring safe interaction with industrial equipment. Class IV basic safety barriers are frequently installed around production machinery to detect operator presence and interrupt dangerous operations immediately. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP65
  • Type of safety according to IEC 61496-1 (EF004105): 4
  • Type of electric connection (EF003961): Cable
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): No
  • With muting function (EF004057): No
  • Suitable for safety functions (EF001597): Yes
  • Reduced resolution (EF0004095): No
  • With beam coding (EF004114): No
  • Fade-out possible (EF003955): No
  • Max. output current at protected output (EF004035): 200 mA
  • Number of protected contact energized outputs (EF003952): 0
  • Safety field height (EF004103): 625 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
