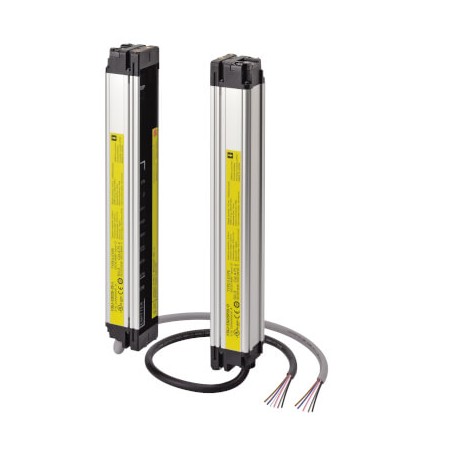

OMRON F3SJ-E0545P25 F3SJ-E0545P25 F3SE0006H F3SJE0545P25 OMRON Class IV Basic Hand 545mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SJ-E0545P25 F3SE0006H F3SJE0545P25 OMRON Class IV Basic Hand 545mm

F3SJ-E0545P25

F3SE0006H

F3SJE0545P25

OMRON

1 Pcs.

Class IV Basic Hand 545mm Safety Light Curtain, F3SJ Easy, Type 4, 25 mm resolution, range 0.2 to 7.0 m, height 545 mm, PNP

Automation > Light curtain
F3SJ-A and MS Barriers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed as an Omron Class IV Basic Hand light curtain, the F3SJ-E0545P25 provides dependable presence-sensing protection for industrial workstations and automated equipment. Light curtains of this type are routinely deployed to secure hazardous access points and safeguard human operators from mechanical hazards.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP65
  • Type of safety according to IEC 61496-1 (EF004105): 4
  • Type of electric connection (EF003961): Cable
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): No
  • With muting function (EF004057): No
  • Suitable for safety functions (EF001597): Yes
  • With beam coding (EF004114): No
  • Fade-out possible (EF003955): No
  • Max. output current at protected output (EF004035): 200 mA
  • Number of protected contact energized outputs (EF003952): 0
  • Safety field height (EF004103): 545 mm
  • Wavelength of the sensor (EF004132): 880 nm
