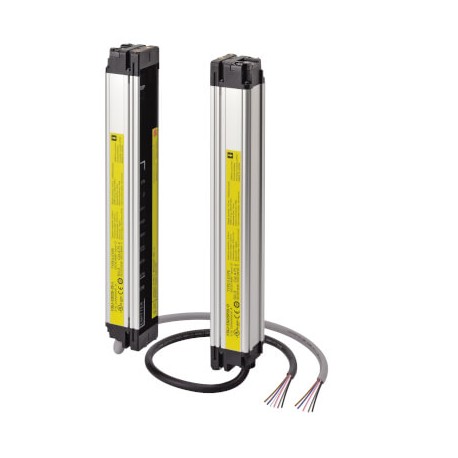

OMRON F3SJ-E0385P25 F3SJ-E0385P25 F3SE0004A F3SJE0385P25 OMRON Class IV Basic Hand 385mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SJ-E0385P25 F3SE0004A F3SJE0385P25 OMRON Class IV Basic Hand 385mm

F3SJ-E0385P25

F3SE0004A

F3SJE0385P25

OMRON

1 Pcs.

Class IV Basic Hand 385mm Safety Light Curtain, F3SJ Easy, Type 4, 25 mm resolution, range 0.2 to 7.0 m, height 385 mm, PNP

Automation > Light curtain
F3SJ-A and MS Barriers

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron F3SJ-E0385P25 is a safety light curtain utilized across automated industrial environments to safeguard personnel around hazardous machinery and moving production equipment. Light curtains create an invisible optical sensing perimeter that immediately halts machine operations when the light beam path is interrupted.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP65
  • Type of safety according to IEC 61496-1 (EF004105): 4
  • Type of electric connection (EF003961): Cable
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): No
  • With muting function (EF004057): No
  • Suitable for safety functions (EF001597): Yes
  • Reduced resolution (EF004095): No
  • With beam coding (EF004114): No
  • Fade-out possible (EF003955): No
  • Max. output current at protected output (EF004035): 200 mA
  • Number of protected contact energized outputs (EF003952): 0
  • Safety field height (EF004103): 385 mm

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
