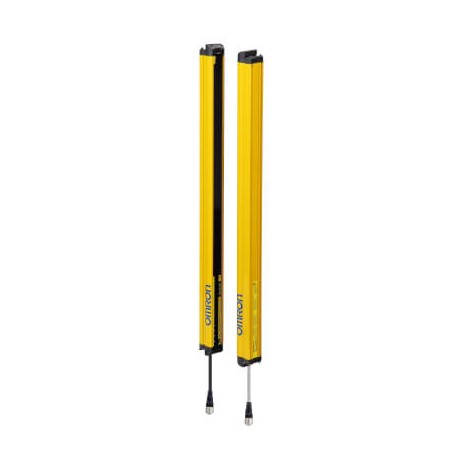

OMRON F3SG-4RE1550P30 F3SG-4RE1550P30 F3SG6153H 673273 OMRON Basic Safety Barrier IP67 Type 4 Hand 1550mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-4RE1550P30 F3SG6153H 673273 OMRON Basic Safety Barrier IP67 Type 4 Hand 1550mm

F3SG-4RE1550P30

F3SG6153H

F3SG4RE1550P30.1

OMRON

1 Pcs.

Barrier basic safety, IP67, Type 4, Hand-1550mm Safety Sensor, F3SG-R Easy, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 1550 mm, PNP

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron F3SG-4RE1550P30 basic safety barrier provides robust perimeter guarding for industrial automation systems, protecting workers from exposure to operational hazards. This optoelectronic safety device halts automated equipment cycles instantly upon intrusion into the monitored optical field.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of safety according to IEC 61496-1: 4
  • Type of protection: Hand protection
  • Detection capability: 30 mm
  • Safety field height: 1550 mm
  • Beam gap: 20 mm
  • Number of beams: 76
  • Number of protected semiconductor outputs: 2
  • Number of semiconductor outputs with signalling function: 0
  • Maximum safety range: 20 m
  • Minimum operating distance: 0.3 m
  • Response time: 9 ms
  • Type of switching output of the OSSD: PNP
  • Key features: Fast response (ON/OFF applications), Simple wiring
  • Scope of delivery: Transmitter and receiver
  • Wavelength of the sensor: 870 nm
  • Type of electric connection: Connector M12

More info

▲

Specifications

Type of safety according to IEC 61496-14
Type of protectionHand protection
Detection capability30 mm
Safety field height1550 mm
Beam gap20 mm
Number of beams76
Number of protected semiconductor outputs2
Number of semiconductor outputs with signalling function0
Maximum safety range20 m
Minimum operating distance0.3 m
Response time9 ms
Cascadable
With muting function
With beam coding
Type of switching output of the OSSDPNP
Key featuresFast response (ON/OFF applications), Simple wiring
Suitable for safety functions
Scope of deliveryTransmitter and receiver
Wavelength of the sensor870 nm
Type of electric connectionConnector M12
Supply voltage DC19.2-28.8 V
Voltage typeDC
Max. output current at protected output300 mA
Degree of protection (IP)IP67
Ambient temperature-10-55 °C
Overall length1550 mm
Height of sensor35 mm
Width sensor35 mm
