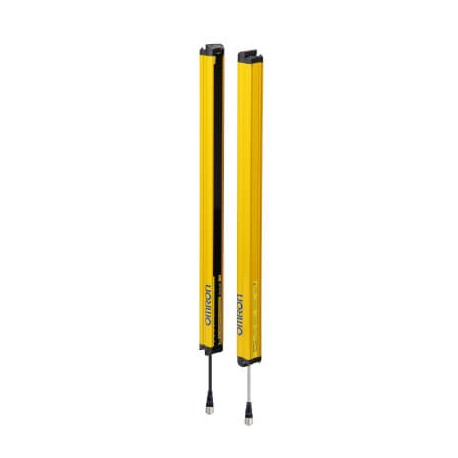

OMRON F3SG-4RE1470P30 F3SG-4RE1470P30 F3SG6152M 673275 OMRON Basic Safety Barrier IP67 Type 4 Hand 1470mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-4RE1470P30 F3SG6152M 673275 OMRON Basic Safety Barrier IP67 Type 4 Hand 1470mm

F3SG-4RE1470P30

F3SG6152M

F3SG4RE1470P30.1

OMRON

1 Pcs.

Barrier basic safety, IP67, Type 4, Hand-1470mm Safety Sensor, F3SG-R Easy, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 1470 mm, PNP

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron F3SG-4RE1470P30 is a basic safety barrier functioning as a protective perimeter guard to ensure worker safety around high-speed industrial machinery. These optoelectronic systems continuously monitor hazardous areas to interrupt dangerous motions instantly. Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Type of safety according to IEC 61496-1: 4
  • Type of protection: Hand protection
  • Detection capability: 30 mm
  • Safety field height: 1470 mm
  • Beam gap: 20 mm
  • Number of beams: 72
  • Number of protected semiconductor outputs: 2
  • Number of semiconductor outputs with signalling function: 0
  • Maximum safety range: 20 m
  • Minimum operating distance: 0.3 m
  • Response time: 9 ms
  • Type of switching output of the OSSD: PNP
  • Key features: Fast response (ON/OFF applications), Simple wiring
  • Scope of delivery: Transmitter and receiver
  • Wavelength of the sensor: 870 nm
  • Connection method: M12 pigtail Smartclick connector

More info

▲

Specifications

Type of safety according to IEC 61496-14
Type of protectionHand protection
Detection capability30 mm
Safety field height1470 mm
Beam gap20 mm
Number of beams72
Number of protected semiconductor outputs2
Number of semiconductor outputs with signalling function0
Maximum safety range20 m
Minimum operating distance0.3 m
Response time9 ms
Cascadable
With muting function
With beam coding
Type of switching output of the OSSDPNP
Key featuresFast response (ON/OFF applications), Simple wiring
Suitable for safety functions
Scope of deliveryTransmitter and receiver
Wavelength of the sensor870 nm
Connection methodM12 pigtail Smartclick connector
Supply voltage DC19.2-28.8 V
Voltage typeDC
Max. output current at protected output300 mA
Degree of protection (IP)IP67
Ambient temperature-10-55 °C
Overall length of sensor1470 mm
Height of sensor35 mm
Width of sensor35 mm
