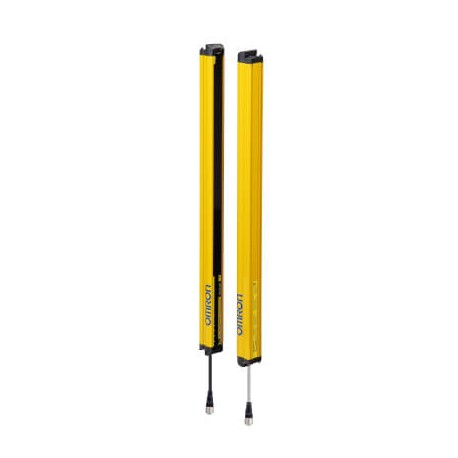

OMRON F3SG-4RE0880P14 F3SG-4RE0880P14 F3SG6120A F3SG4RE0880P14,1 OMRON Barrier basic safety, IP67, Type 4, Finger 880mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-4RE0880P14 F3SG6120A F3SG4RE0880P14,1 OMRON Barrier basic safety, IP67, Type 4, Finger 880mm

F3SG-4RE0880P14

F3SG6120A

F3SG4RE0880P14.1

OMRON

1 Pcs.

Barrier basic safety, IP67, Type 4, Finger 880mm Safety Sensor, F3SG-R Easy, Type 4, 14 mm resolution, range 0.3 to 10.0 m, height 880 mm, PNP

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Type of safety according to IEC 61496-14Type of protectionFinger protectionDetection capability14 mmSafety field height880 mmBeam gap10 mmNumber of beams87Number of protected semiconductor outputs2Number of semiconductor outputs with signalling function0Maximum safety range10 mMinimum operating distance0.3 mResponse time9 msCascadableWith muting functionWith beam codingType of switching output of the OSSDPNPKey featuresFast response (ON/OFF applications), Simple wiringSuitable for safety functionsScope of deliveryTransmitter and receiverWavelength of the sensor870 nmConnection methodM12 pigtail Smartclick connectorSupply voltage DC19.2-28.8 VVoltage typeDCMax. output current at protected output300 mADegree of protection (IP)IP67Ambient temperature-10-55 °COverall length of sensor910 mmHeight of sensor35 mmWidth of sensor35 mm
ETIM for 673300 Sensors (EC002549)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Voltage type (EF000187) DC
Type of switching output of the OSSD (EF003959) PNP
Scope of delivery of the one-way system (EF004032) Transmitter and receiver
Degree of protection (NEMA) (EF011959) Other
Degree of protection (IP) (EF005474) IP67
Type of safety according to IEC 61496-1 (EF004105) 4
Type of interface for safety communication (EF003956) Other
Type of electric connection (EF003961) Connector M12
Operation agent-safety class (EF003982) Safety class 3
Explosion safety category for gas (EF003997) None
Cascadable (EF000507) No
Override possible (EF004061) No
With muting function (EF004057) No
With monitoring function downstream switching devices (EF004052) No
Suitable for safety functions (EF001597) Yes
Reduced resolution (EF004095) No
With beam coding (EF004114) No
Fade-out possible (EF003955) No
With restart blockage (EF004054) No
Max. output current at protected output (EF004035) 300 mA
Number of protected contact energized outputs (EF003952) 0
Number of semiconductor outputs with signalling function (EF003945) 0
Safety field height (EF004103) 880 mm
Wavelength of the sensor (EF004132) 870 nm
Detection capability for test bodies (EF003991) 14 mm
Resolution of the light curtain (EF006784) 10 mm
Response time (EF004094) 9 ms
Number of protected semiconductor outputs (EF003951) 2
Transmission range of the safety field (EF004098) 10 m
Switching voltage of OSSD at state "high" (EF004102) 24 V
Width sensor (EF007094) 35 mm
Height of sensor (EF007283) 35 mm
Length of sensor (EF007334) 910 mm
Number of contact energized outputs with signalling function (EF003946) 0
Rated control supply voltage DC (EF003980) 19.2 V
Ambient temperature (EF002386) -10 °C
