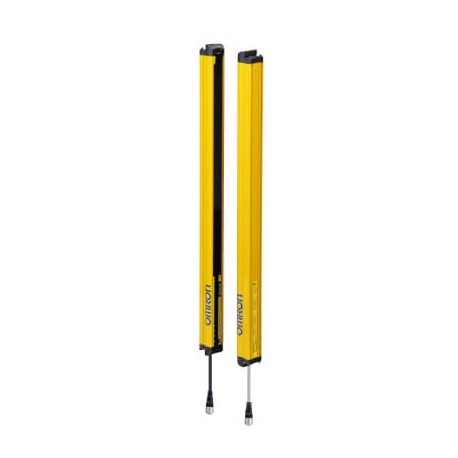

OMRON F3SG-4RE0830P30 F3SG-4RE0830P30 F3SG6144R F3SG4RE0830P30,1 OMRON Barrier basic safety, IP67, Type 4, Hand-830mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-4RE0830P30 F3SG6144R F3SG4RE0830P30,1 OMRON Barrier basic safety, IP67, Type 4, Hand-830mm

F3SG-4RE0830P30

F3SG6144R

F3SG4RE0830P30.1

OMRON

1 Pcs.

Barrier basic safety, IP67, Type 4, Hand-830mm Safety Sensor, F3SG-R Easy, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 830 mm, PNP

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

A safety light barrier of this classification creates an invisible optical screen used primarily to prevent human access to dangerous mechanical areas during active cycles. When an object or body part interrupts the beam, the control output switches state to immediately remove power from the hazardous actuator. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP67
  • Type of safety according to IEC 61496-1 (EF004105): 4
  • Type of electric connection (EF003961): Connector M12
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): No
  • Override possible (EF004061): No
  • With muting function (EF004057): No
  • Suitable for safety functions (EF001597): Yes
  • Reduced resolution (EF004095): No
  • With beam coding (EF004114): No
  • Fade-out possible (EF003955): No
  • With restart blockage (EF004054): No
  • Max. output current at protected output (EF004035): 300 mA

More info

▲
Type of safety according to IEC 61496-14Type of protectionHand protectionDetection capability30 mmSafety field height830 mmBeam gap20 mmNumber of beams40Number of protected semiconductor outputs2Number of semiconductor outputs with signalling function0Maximum safety range20 mMinimum operating distance0.3 mResponse time7 msCascadableWith muting functionWith beam codingType of switching output of the OSSDPNPKey featuresFast response (ON/OFF applications), Simple wiringSuitable for safety functionsScope of deliveryTransmitter and receiverWavelength of the sensor870 nmConnection methodM12 pigtail Smartclick connectorSupply voltage DC19.2-28.8 VVoltage typeDCMax. output current at protected output300 mADegree of protection (IP)IP67Ambient temperature-10-55 °COverall length of sensor830 mmHeight of sensor35 mmWidth of sensor35 mm
