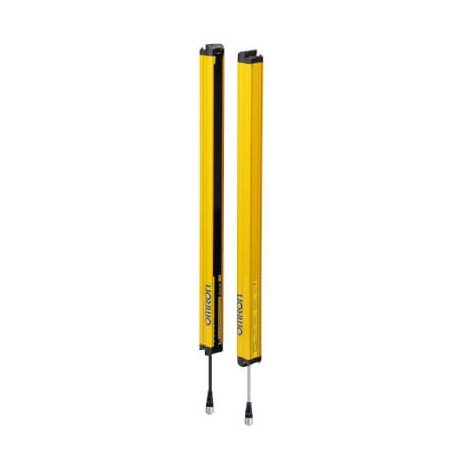

OMRON F3SG-4RE0800P14 F3SG-4RE0800P14 F3SG6119H F3SG4RE0800P14,1 OMRON Barrier basic safety, IP67, Type 4, Finger 800mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-4RE0800P14 F3SG6119H F3SG4RE0800P14,1 OMRON Barrier basic safety, IP67, Type 4, Finger 800mm

F3SG-4RE0800P14

F3SG6119H

F3SG4RE0800P14.1

OMRON

1 Pcs.

Barrier basic safety, IP67, Type 4, Finger 800mm Safety Sensor, F3SG-R Easy, Type 4, 14 mm resolution, range 0.3 to 10.0 m, height 800 mm, PNP

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron F3SG-4RE0800P14 barrier basic safety unit functions as a high-integrity optical safeguarding solution designed to protect workers from moving machine hazards in industrial environments. Light curtains monitor perimeter access points, stopping equipment operation immediately when an operator crosses the beam path. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP67
  • Type of safety according to IEC 61496-1 (EF004105): 4
  • Type of electric connection (EF003961): Connector M12
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): No
  • Override possible (EF004061): No
  • With muting function (EF004057): No
  • Suitable for safety functions (EF001597): Yes
  • Reduced resolution (EF004095): No
  • With beam coding (EF004114): No
  • Fade-out possible (EF003955): No
  • With restart blockage (EF004054): No
  • Max. output current at protected output (EF004035): 300 mA

More info

▲
Type of safety according to IEC 61496-14Type of protectionFinger protectionDetection capability14 mmSafety field height800 mmBeam gap10 mmNumber of beams79Number of protected semiconductor outputs2Number of semiconductor outputs with signalling function0Maximum safety range10 mMinimum operating distance0.3 mResponse time9 msCascadableWith muting functionWith beam codingType of switching output of the OSSDPNPKey featuresFast response (ON/OFF applications), Simple wiringSuitable for safety functionsScope of deliveryTransmitter and receiverWavelength of the sensor870 nmConnection methodM12 pigtail Smartclick connectorSupply voltage DC19.2-28.8 VVoltage typeDCMax. output current at protected output300 mADegree of protection (IP)IP67Ambient temperature-10-55 °COverall length of sensor830 mmHeight of sensor35 mmWidth of sensor35 mm
