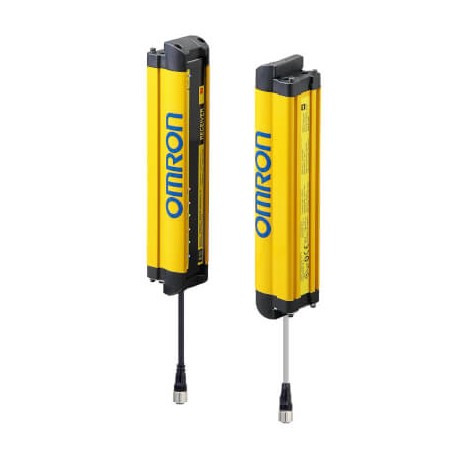

OMRON F3SG-4RE0430P30 F3SG-4RE0430P30 F3SG6139B 673293 OMRON Basic Safety Barrier IP67 Type 4 Hand 430mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-4RE0430P30 F3SG6139B 673293 OMRON Basic Safety Barrier IP67 Type 4 Hand 430mm

F3SG-4RE0430P30

F3SG6139B

F3SG4RE0430P30.1

OMRON

1 Pcs.

Barrier basic safety, IP67, Type 4, Hand-430mm Safety Sensor, F3SG-R Easy, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 430 mm, PNP

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron basic safety barrier, identified by part number F3SG-4RE0430P30, functions as a reliable optoelectronic safeguard designed to prevent physical injury around hazardous plant equipment. Industrial facilities routinely mount these barriers alongside material handling conveyors, hydraulic presses, and automated assembly machinery to ensure immediate operational shutdowns. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of safety according to IEC 61496-1: 4
  • Type of protection: Hand protection
  • Detection capability: 30 mm
  • Safety field height: 430 mm
  • Beam gap: 20 mm
  • Number of beams: 20
  • Number of protected semiconductor outputs: 2
  • Number of semiconductor outputs with signalling function: 0
  • Maximum safety range: 20 m
  • Minimum operating distance: 0.3 m
  • Response time: 5 ms
  • Type of switching output of the OSSD: PNP
  • Key features: Fast response (ON/OFF applications), Simple wiring
  • Scope of delivery: Transmitter and receiver
  • Wavelength of the sensor: 870 nm
  • Type of electric connection: Connector M12

More info

▲

Specifications

Type of safety according to IEC 61496-14
Type of protectionHand protection
Detection capability30 mm
Safety field height430 mm
Beam gap20 mm
Number of beams20
Number of protected semiconductor outputs2
Number of semiconductor outputs with signalling function0
Maximum safety range20 m
Minimum operating distance0.3 m
Response time5 ms
Cascadable
With muting function
With beam coding
Type of switching output of the OSSDPNP
Key featuresFast response (ON/OFF applications), Simple wiring
Suitable for safety functions
Scope of deliveryTransmitter and receiver
Wavelength of the sensor870 nm
Type of electric connectionConnector M12
Supply voltage DC19.2-28.8 V
Voltage typeDC
Max. output current at protected output300 mA
Degree of protection (IP)IP67
Ambient temperature-10-55 °C
Overall length430 mm
Height of sensor35 mm
Width sensor35 mm
