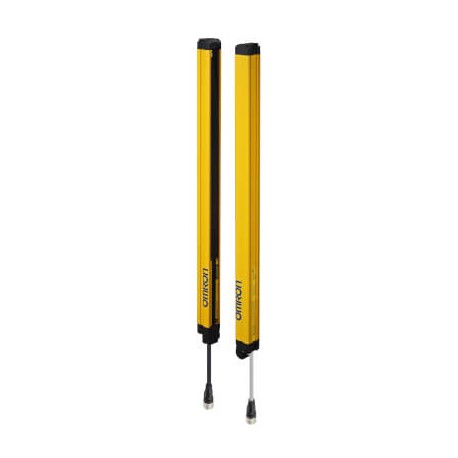

OMRON F3SG-4RA1230-30 F3SG-4RA1230-30 F3SG6064G 673594 OMRON Advanced Safety Barrier IP67 Type 4 Hand 1230mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-4RA1230-30 F3SG6064G 673594 OMRON Advanced Safety Barrier IP67 Type 4 Hand 1230mm

F3SG-4RA1230-30

F3SG6064G

F3SG4RA123030.1

OMRON

1 Pcs.

Barrier security advanced, IP67, Type 4, Hand-1230mm Safety Sensor, F3SG-R Advanced, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 1230 mm, PNP/NPN

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron F3SG-4RA1230-30 advanced safety barrier is an optoelectronic protective device used to safeguard personnel around hazardous industrial machinery and automated cells. This safety light curtain projects an infrared field to detect intrusion into restricted areas, instantly halting machine operations to prevent injury. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of safety according to IEC 61496-1: 4
  • Type of protection: Hand protection
  • Detection capability: 30 mm
  • Safety field height: 1230 mm
  • Beam gap: 20 mm
  • Number of beams: 60
  • Number of protected semiconductor outputs: 2
  • Number of semiconductor outputs with signalling function: 1
  • Maximum safety range: 20 m
  • Minimum operating distance: 0.3 m
  • Response time: 13 ms
  • Type of switching output of the OSSD: PNP/NPN
  • Communication port(s): USB
  • Scope of delivery: Transmitter and receiver
  • Wavelength of the sensor: 870 nm
  • Type of electric connection: Connector M12

More info

▲

Specifications

Type of safety according to IEC 61496-14
Type of protectionHand protection
Detection capability30 mm
Safety field height1230 mm
Beam gap20 mm
Number of beams60
Number of protected semiconductor outputs2
Number of semiconductor outputs with signalling function1
Maximum safety range20 m
Minimum operating distance0.3 m
Response time13 ms
Cascadable
With muting function
With beam coding
Type of switching output of the OSSDPNP/NPN
Communication port(s)USB
Suitable for safety functions
Scope of deliveryTransmitter and receiver
Wavelength of the sensor870 nm
Type of electric connectionConnector M12
Supply voltage DC19.2-28.8 V
Voltage typeDC
Max. output current at protected output300 mA
Degree of protection (IP)IP67
Ambient temperature-10-55 °C
Overall length1248 mm
Height of sensor35 mm
Width sensor35 mm

Accessories

F39-JG3A-LSafety sensor accessory, F3SG-R Advanced, emitter cable M12 5-pin, female, 3 m
F39-JG7A-DSafety sensor accessory, F3SG-R Advanced, receiver cable M12 8-pin, female, 7 m
F39-JG7A-LSafety sensor accessory, F3SG-R Advanced, emitter cable M12 5-pin, female, 7 m
