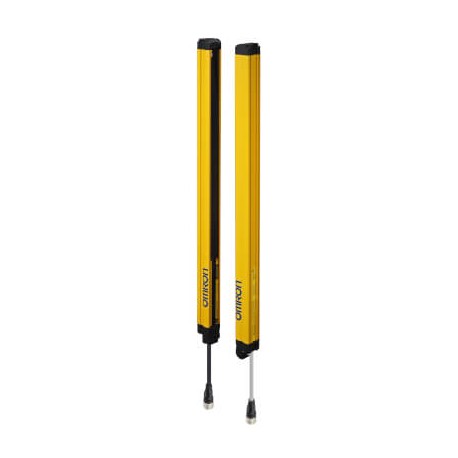

OMRON F3SG-4RA0830-30 F3SG-4RA0830-30 F3SG6059M 673504 OMRON Advanced Safety Barrier IP67 Type 4 Hand 830mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-4RA0830-30 F3SG6059M 673504 OMRON Advanced Safety Barrier IP67 Type 4 Hand 830mm

F3SG-4RA0830-30

F3SG6059M

F3SG4RA083030.1

OMRON

1 Pcs.

Barrier security advanced, IP67, Type 4, Hand-830mm Safety Sensor, F3SG-R Advanced, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 830 mm, PNP/NPN

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron F3SG-4RA0830-30 is an advanced safety barrier designed to safeguard personnel around hazardous industrial machinery. Light curtains and safety barriers establish an invisible optical perimeter that immediately halts machine operations when an operator crosses the detection zone. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of safety according to IEC 61496-1: 4
  • Type of protection: Hand protection
  • Detection capability: 30 mm
  • Safety field height: 830 mm
  • Beam gap: 20 mm
  • Number of beams: 40
  • Number of protected semiconductor outputs: 2
  • Number of semiconductor outputs with signalling function: 1
  • Maximum safety range: 20 m
  • Minimum operating distance: 0.3 m
  • Response time: 8 ms
  • Type of switching output of the OSSD: PNP/NPN
  • Communication port(s): USB
  • Scope of delivery: Transmitter and receiver
  • Wavelength of the sensor: 870 nm
  • Connection method: M12 pigtail Smartclick connector

More info

▲

Specifications

Type of safety according to IEC 61496-14
Type of protectionHand protection
Detection capability30 mm
Safety field height830 mm
Beam gap20 mm
Number of beams40
Number of protected semiconductor outputs2
Number of semiconductor outputs with signalling function1
Maximum safety range20 m
Minimum operating distance0.3 m
Response time8 ms
Cascadable
With muting function
With beam coding
Type of switching output of the OSSDPNP/NPN
Communication port(s)USB
Suitable for safety functions
Scope of deliveryTransmitter and receiver
Wavelength of the sensor870 nm
Connection methodM12 pigtail Smartclick connector
Supply voltage DC19.2-28.8 V
Voltage typeDC
Max. output current at protected output300 mA
Degree of protection (IP)IP67
Ambient temperature-10-55 °C
Overall length of sensor848 mm
Height of sensor35 mm
Width of sensor35 mm

Accessories

F39-JG3A-LSafety sensor accessory, F3SG-R Advanced, emitter cable M12 5-pin, female, 3 m
F39-JG7A-DSafety sensor accessory, F3SG-R Advanced, receiver cable M12 8-pin, female, 7 m
F39-JG7A-LSafety sensor accessory, F3SG-R Advanced, emitter cable M12 5-pin, female, 7 m
