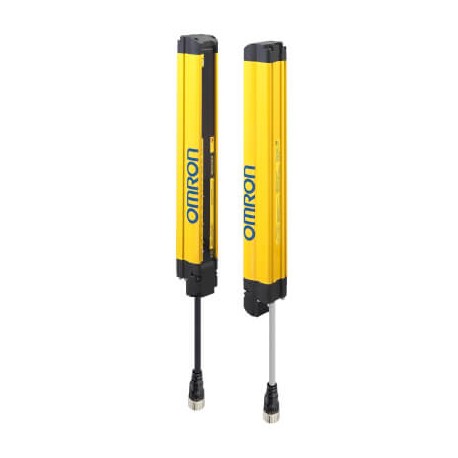

OMRON F3SG-4RA0510-30 F3SG-4RA0510-30 F3SG6055H F3SG4RA051030,1 OMRON Barrier security advanced, IP67, Type 4, Hand-510mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-4RA0510-30 F3SG6055H F3SG4RA051030,1 OMRON Barrier security advanced, IP67, Type 4, Hand-510mm

F3SG-4RA0510-30

F3SG6055H

F3SG4RA051030.1

OMRON

1 Pcs.

Barrier security advanced, IP67, Type 4, Hand-510mm Safety Sensor, F3SG-R Advanced, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 510 mm, PNP/NPN

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for reliable operator protection, the Omron F3SG-4RA0510-30 operates as an advanced safety light curtain that creates an invisible optical barrier around machinery pinch points. Automated production lines integrate these Type 4 safety devices to immediately halt hazardous operations upon detection of human presence.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type: DC
  • Type of switching output of the OSSD: PNP/NPN
  • Scope of delivery of the one-way system: Transmitter and receiver
  • Degree of protection (IP): IP67
  • Type of safety according to IEC 61496-1: 4
  • Type of electric connection: Connector M12
  • Operation agent-safety class: Safety class 3
  • Cascadable: Yes
  • Override possible: Yes
  • With muting function: Yes
  • Suitable for safety functions: Yes
  • Reduced resolution: Yes
  • With beam coding: Yes
  • Fade-out possible: Yes
  • With restart blockage: Yes
  • Max. output current at protected output: 300 mA

More info

▲
Type of safety according to IEC 61496-14Type of protectionHand protectionDetection capability30 mmSafety field height510 mmBeam gap20 mmNumber of beams24Number of protected semiconductor outputs2Number of semiconductor outputs with signalling function1Maximum safety range20 mMinimum operating distance0.3 mResponse time8 msCascadableWith muting functionWith beam codingType of switching output of the OSSDPNP/NPNCommunication port(s)USBSuitable for safety functionsScope of deliveryTransmitter and receiverWavelength of the sensor870 nmConnection methodM12 pigtail Smartclick connectorSupply voltage DC19.2-28.8 VVoltage typeDCMax. output current at protected output300 mADegree of protection (IP)IP67Ambient temperature-10-55 °COverall length of sensor528 mmHeight of sensor35 mmWidth of sensor35 mm
