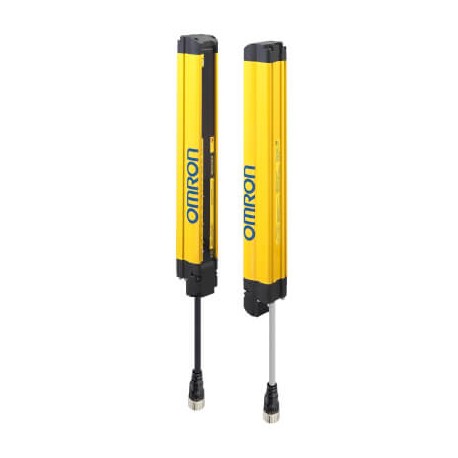

F3SG-4RA0480-14 F3SG6005A 673567 OMRON Advanced Safety Barrier IP67 Type 4 Finger 480mm
F3SG-4RA0480-14
F3SG6005A
F3SG4RA048014,1
OMRON
1 Pcs.
Automation > Light curtain
Barriers F3SG-R
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
An Omron Advanced Safety Barrier IP67 Type 4 Finger 480mm (F3SG-4RA0480-14) is an electro-sensitive protective device utilized to safeguard personnel around hazardous machinery by instantly halting operations when the light curtain is breached. These safety barriers are commonly integrated into automated production lines, presses, and robotic cells to meet rigorous industrial safety compliance standards.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of safety according to IEC 61496-1: 4
- Type of protection: Finger protection
- Detection capability: 14 mm
- Safety field height: 480 mm
- Beam gap: 10 mm
- Number of beams: 47
- Number of protected semiconductor outputs: 2
- Number of semiconductor outputs with signalling function: 1
- Maximum safety range: 10 m
- Minimum operating distance: 0.3 m
- Response time: 13 ms
- Type of switching output of the OSSD: PNP/NPN
- Communication port(s): USB
- Scope of delivery: Transmitter and receiver
- Wavelength of the sensor: 870 nm
- Connection method: M12 pigtail Smartclick connector
More info
▲Specifications
| Type of safety according to IEC 61496-1 | 4 |
| Type of protection | Finger protection |
| Detection capability | 14 mm |
| Safety field height | 480 mm |
| Beam gap | 10 mm |
| Number of beams | 47 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 1 |
| Maximum safety range | 10 m |
| Minimum operating distance | 0.3 m |
| Response time | 13 ms |
| Cascadable | |
| With muting function | |
| With beam coding | |
| Type of switching output of the OSSD | PNP/NPN |
| Communication port(s) | USB |
| Suitable for safety functions | |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Connection method | M12 pigtail Smartclick connector |
| Supply voltage DC | 19.2-28.8 V |
| Voltage type | DC |
| Max. output current at protected output | 300 mA |
| Degree of protection (IP) | IP67 |
| Ambient temperature | -10-55 °C |
| Overall length of sensor | 528 mm |
| Height of sensor | 35 mm |
| Width of sensor | 35 mm |
