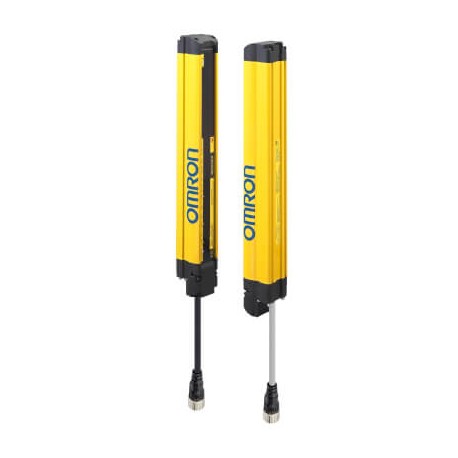

OMRON F3SG-4RA0430-30 F3SG-4RA0430-30 F3SG6054M F3SG4RA043030,1 OMRON Barrier security advanced, IP67, Type 4, Hand-430mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-4RA0430-30 F3SG6054M F3SG4RA043030,1 OMRON Barrier security advanced, IP67, Type 4, Hand-430mm

F3SG-4RA0430-30

F3SG6054M

F3SG4RA043030.1

OMRON

1 Pcs.

Barrier security advanced, IP67, Type 4, Hand-430mm Safety Sensor, F3SG-R Advanced, Type 4, 30 mm resolution, range 0.3 to 20.0 m, height 430 mm, PNP/NPN

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Type of safety according to IEC 61496-14Type of protectionHand protectionDetection capability30 mmSafety field height430 mmBeam gap20 mmNumber of beams20Number of protected semiconductor outputs2Number of semiconductor outputs with signalling function1Maximum safety range20 mMinimum operating distance0.3 mResponse time8 msCascadableWith muting functionWith beam codingType of switching output of the OSSDPNP/NPNCommunication port(s)USBSuitable for safety functionsScope of deliveryTransmitter and receiverWavelength of the sensor870 nmConnection methodM12 pigtail Smartclick connectorSupply voltage DC19.2-28.8 VVoltage typeDCMax. output current at protected output300 mADegree of protection (IP)IP67Ambient temperature-10-55 °COverall length of sensor448 mmHeight of sensor35 mmWidth of sensor35 mm
ETIM for 673560 Sensors (EC002549)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Voltage type (EF000187) DC
Type of switching output of the OSSD (EF003959) PNP/NPN
Scope of delivery of the one-way system (EF004032) Transmitter and receiver
Degree of protection (NEMA) (EF011959) Other
Degree of protection (IP) (EF005474) IP67
Type of safety according to IEC 61496-1 (EF004105) 4
Type of interface for safety communication (EF003956) Other
Type of electric connection (EF003961) Connector M12
Operation agent-safety class (EF003982) Safety class 3
Explosion safety category for gas (EF003997) None
Cascadable (EF000507) Yes
Override possible (EF004061) Yes
With muting function (EF004057) Yes
With monitoring function downstream switching devices (EF004052) Yes
Suitable for safety functions (EF001597) Yes
Reduced resolution (EF004095) Yes
With beam coding (EF004114) Yes
Fade-out possible (EF003955) Yes
With restart blockage (EF004054) Yes
Max. output current at protected output (EF004035) 300 mA
Number of protected contact energized outputs (EF003952) 0
Number of semiconductor outputs with signalling function (EF003945) 1
Safety field height (EF004103) 430 mm
Wavelength of the sensor (EF004132) 870 nm
Detection capability for test bodies (EF003991) 30 mm
Resolution of the light curtain (EF006784) 20 mm
Response time (EF004094) 8 ms
Number of protected semiconductor outputs (EF003951) 2
Transmission range of the safety field (EF004098) 20 m
Switching voltage of OSSD at state "high" (EF004102) 24 V
Width sensor (EF007094) 35 mm
Height of sensor (EF007283) 35 mm
Length of sensor (EF007334) 448 mm
Number of contact energized outputs with signalling function (EF003946) 0
Rated control supply voltage DC (EF003980) 19.2 V
Ambient temperature (EF002386) -10 °C
