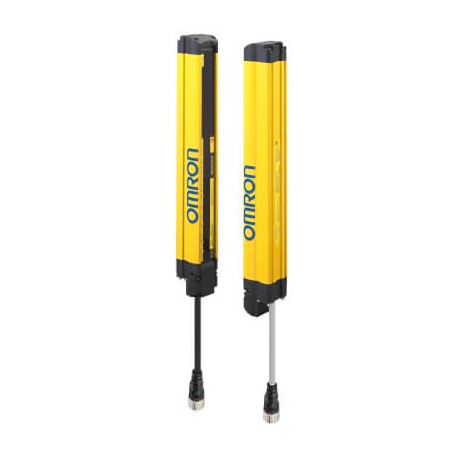

F3SG-4RA0160-14 F3SG6001R F3SG4RA016014,1 OMRON Barrier security advanced, IP67, Type 4 Toe 160mm
F3SG-4RA0160-14
F3SG6001R
F3SG4RA016014.1
OMRON
1 Pcs.
Automation > Light curtain
Barriers F3SG-R
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
The Omron F3SG-4RA0160-14 barrier security advanced unit serves as a high-resolution optoelectronic safeguard designed to halt machinery whenever personnel approach unsafe zones. Safety light curtains are widely deployed across automated assembly lines and robotic workcells to protect operators from mechanical hazards without hindering workflow. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of safety according to IEC 61496-1: 4
- Type of protection: Finger protection
- Detection capability: 14 mm
- Safety field height: 160 mm
- Beam gap: 10 mm
- Number of beams: 15
- Number of protected semiconductor outputs: 2
- Number of semiconductor outputs with signalling function: 1
- Maximum safety range: 10 m
- Minimum operating distance: 0.3 m
- Response time: 8 ms
- Type of switching output of the OSSD: PNP/NPN
- Communication port(s): USB
- Scope of delivery: Transmitter and receiver
- Wavelength of the sensor: 870 nm
- Type of electric connection: Connector M12
More info
▲Specifications
| Type of safety according to IEC 61496-1 | 4 |
| Type of protection | Finger protection |
| Detection capability | 14 mm |
| Safety field height | 160 mm |
| Beam gap | 10 mm |
| Number of beams | 15 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 1 |
| Maximum safety range | 10 m |
| Minimum operating distance | 0.3 m |
| Response time | 8 ms |
| Cascadable | |
| With muting function | |
| With beam coding | |
| Type of switching output of the OSSD | PNP/NPN |
| Communication port(s) | USB |
| Suitable for safety functions | |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Type of electric connection | Connector M12 |
| Supply voltage DC | 19.2-28.8 V |
| Voltage type | DC |
| Max. output current at protected output | 300 mA |
| Degree of protection (IP) | IP67 |
| Ambient temperature | -10-55 °C |
| Overall length | 208 mm |
| Height of sensor | 35 mm |
| Width sensor | 35 mm |
