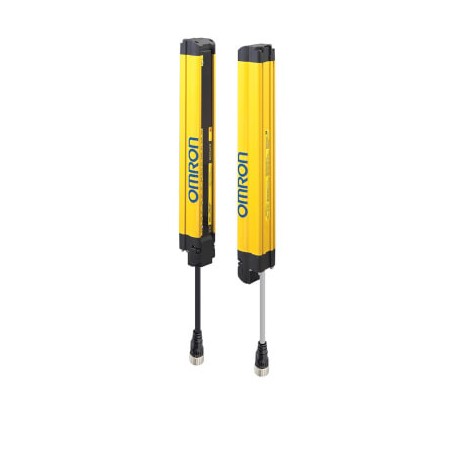

OMRON F3SG-2RE2270P30 F3SG-2RE2270P30 F3SG6217H F3SG2RE2270P30,1 OMRON Barrier basic safety, IP67 Type 2 Hand 2270mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-2RE2270P30 F3SG6217H F3SG2RE2270P30,1 OMRON Barrier basic safety, IP67 Type 2 Hand 2270mm

F3SG-2RE2270P30

F3SG6217H

F3SG2RE2270P30.1

OMRON

1 Pcs.

Barrier basic safety, IP67 Type 2 Hand 2270mm Basic Safety Barrier IP67 Type 2 Hand 2270mm Safety Sensor, F3SG-R Easy, Type 2, 30 mm resolution, range 0.3 to 20.0 m, height 2270 mm, PNP

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron F3SG-2RE2270P30 barrier basic safety establishes reliable perimeter protection around hazardous machinery zones, halting operations whenever the optical path is interrupted. Optoelectronic safety barriers of this type are routinely integrated into automated manufacturing lines to safeguard personnel from moving parts and mechanical hazards without obstructing material flow. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP67
  • Type of safety according to IEC 61496-1 (EF004105): 2
  • Type of electric connection (EF003961): Connector M12
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): No
  • Override possible (EF004061): No
  • With muting function (EF004057): No
  • Suitable for safety functions (EF001597): Yes
  • Reduced resolution (EF004095): No
  • With beam coding (EF004114): No
  • Fade-out possible (EF003955): No
  • With restart blockage (EF004054): No
  • Max. output current at protected output (EF004035): 300 mA
