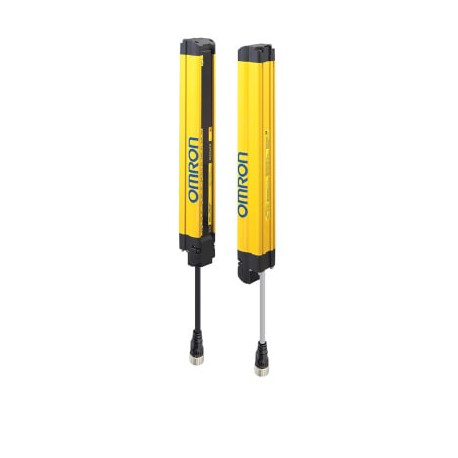

OMRON F3SG-2RE2030P30 F3SG-2RE2030P30 F3SG6214C F3SG2RE2030P30,1 OMRON Barrier basic safety, IP67 Type 2 Hand 2030mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-2RE2030P30 F3SG6214C F3SG2RE2030P30,1 OMRON Barrier basic safety, IP67 Type 2 Hand 2030mm

F3SG-2RE2030P30

F3SG6214C

F3SG2RE2030P30.1

OMRON

1 Pcs.

Barrier basic safety, IP67 Type 2 Hand 2030mm Basic Safety Barrier IP67 Type 2 Hand 2030mm Safety Sensor, F3SG-R Easy, Type 2, 30 mm resolution, range 0.3 to 20.0 m, height 2030 mm, PNP

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲

ETIM for 673586 Sensors (EC002549)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Voltage type (EF000187) DC
Type of switching output of the OSSD (EF003959) PNP
Scope of delivery of the one-way system (EF004032) Transmitter and receiver
Degree of protection (NEMA) (EF011959) Other
Degree of protection (IP) (EF005474) IP67
Type of safety according to IEC 61496-1 (EF004105) 2
Type of interface for safety communication (EF003956) Other
Type of electric connection (EF003961) Connector M12
Operation agent-safety class (EF003982) Safety class 3
Explosion safety category for gas (EF003997) None
Cascadable (EF000507) No
Override possible (EF004061) No
With muting function (EF004057) No
With monitoring function downstream switching devices (EF004052) No
Suitable for safety functions (EF001597) Yes
Reduced resolution (EF004095) No
With beam coding (EF004114) No
Fade-out possible (EF003955) No
With restart blockage (EF004054) No
Max. output current at protected output (EF004035) 300 mA
Number of protected contact energized outputs (EF003952) 0
Number of semiconductor outputs with signalling function (EF003945) 0
Safety field height (EF004103) 2030 mm
Wavelength of the sensor (EF004132) 870 nm
Detection capability for test bodies (EF003991) 30 mm
Resolution of the light curtain (EF006784) 20 mm
Response time (EF004094) 9 ms
Number of protected semiconductor outputs (EF003951) 2
Transmission range of the safety field (EF004098) 20 m
Switching voltage of OSSD at state "high" (EF004102) 24 V
Width sensor (EF007094) 35 mm
Height of sensor (EF007283) 35 mm
Length of sensor (EF007334) 2048 mm
Number of contact energized outputs with signalling function (EF003946) 0
Rated control supply voltage DC (EF003980) 19.2 V
Ambient temperature (EF002386) -10 °C
