View larger

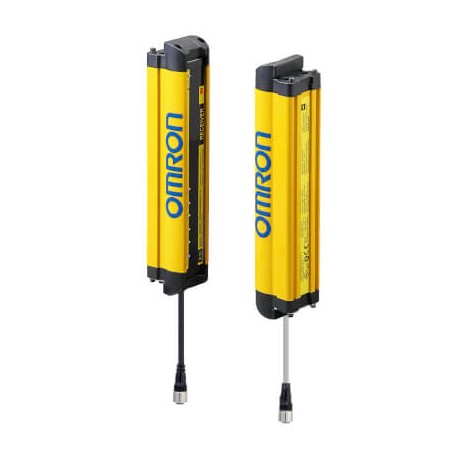

F3SG-2RE0750P30 F3SG6198H 673588 OMRON Basic Safety Barrier IP67 Type 2 Hand 750mm
F3SG-2RE0750P30
F3SG6198H
F3SG2RE0750P30.1
OMRON
1 Pcs.
Automation > Light curtain
Barriers F3SG-R
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Engineered for machine access protection, the Omron F3SG-2RE0750P30 acts as a basic safety light curtain that safeguards personnel from hazardous moving parts in automated cells. Industrial environments install these protective barriers to ensure compliance with occupational safety standards and prevent accidental machine interaction.
Pricing, availability, and lead time are confirmed per enquiry through an RFQ.
- Type of safety according to IEC 61496-1: 2
- Type of protection: Hand protection
- Detection capability: 30 mm
- Safety field height: 750 mm
- Beam gap: 20 mm
- Number of beams: 36
- Number of protected semiconductor outputs: 2
- Number of semiconductor outputs with signalling function: 0
- Maximum safety range: 20 m
- Minimum operating distance: 0.3 m
- Response time: 7 ms
- Type of switching output of the OSSD: PNP
- Key features: Fast response (ON/OFF applications), Simple wiring
- Scope of delivery: Transmitter and receiver
- Wavelength of the sensor: 870 nm
- Connection method: M12 pigtail Smartclick connector
More info
▲Specifications
| Type of safety according to IEC 61496-1 | 2 |
| Type of protection | Hand protection |
| Detection capability | 30 mm |
| Safety field height | 750 mm |
| Beam gap | 20 mm |
| Number of beams | 36 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 0 |
| Maximum safety range | 20 m |
| Minimum operating distance | 0.3 m |
| Response time | 7 ms |
| Cascadable | |
| With muting function | |
| With beam coding | |
| Type of switching output of the OSSD | PNP |
| Key features | Fast response (ON/OFF applications), Simple wiring |
| Suitable for safety functions | |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Connection method | M12 pigtail Smartclick connector |
| Supply voltage DC | 19.2-28.8 V |
| Voltage type | DC |
| Max. output current at protected output | 300 mA |
| Degree of protection (IP) | IP67 |
| Ambient temperature | -10-55 °C |
| Overall length of sensor | 768 mm |
| Height of sensor | 35 mm |
| Width of sensor | 35 mm |
