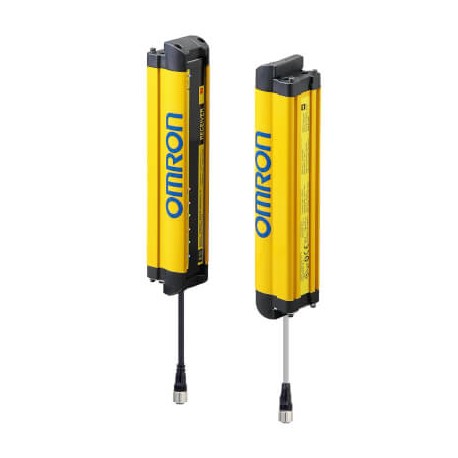

F3SG-2RE0430P30 F3SG6194E 673498 OMRON Basic Safety Barrier IP67 Type 2 Hand 430mm
F3SG-2RE0430P30
F3SG6194E
F3SG2RE0430P30.1
OMRON
1 Pcs.
Automation > Light curtain
Barriers F3SG-R
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron F3SG-2RE0430P30 Basic Safety Barrier IP67 Type 2 Hand 430mm acts as an optoelectronic safety barrier used to detect intrusion into hazardous areas around industrial machines. Such barriers are routinely installed in light manufacturing, packaging machinery, and assembly stations to safeguard human operators. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of safety according to IEC 61496-1: 2
- Type of protection: Hand protection
- Detection capability: 30 mm
- Safety field height: 430 mm
- Beam gap: 20 mm
- Number of beams: 20
- Number of protected semiconductor outputs: 2
- Number of semiconductor outputs with signalling function: 0
- Maximum safety range: 20 m
- Minimum operating distance: 0.3 m
- Response time: 5 ms
- Type of switching output of the OSSD: PNP
- Key features: Fast response (ON/OFF applications), Simple wiring
- Scope of delivery: Transmitter and receiver
- Wavelength of the sensor: 870 nm
- Type of electric connection: Connector M12
More info
▲Specifications
| Type of safety according to IEC 61496-1 | 2 |
| Type of protection | Hand protection |
| Detection capability | 30 mm |
| Safety field height | 430 mm |
| Beam gap | 20 mm |
| Number of beams | 20 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 0 |
| Maximum safety range | 20 m |
| Minimum operating distance | 0.3 m |
| Response time | 5 ms |
| Cascadable | |
| With muting function | |
| With beam coding | |
| Type of switching output of the OSSD | PNP |
| Key features | Fast response (ON/OFF applications), Simple wiring |
| Suitable for safety functions | |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Type of electric connection | Connector M12 |
| Supply voltage DC | 19.2-28.8 V |
| Voltage type | DC |
| Max. output current at protected output | 300 mA |
| Degree of protection (IP) | IP67 |
| Ambient temperature | -10-55 °C |
| Overall length | 448 mm |
| Height of sensor | 35 mm |
| Width sensor | 35 mm |
