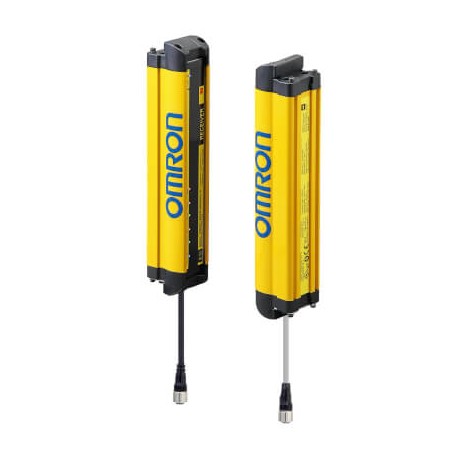

F3SG-2RE0350P30 F3SG6193G 673509 OMRON Basic Safety Barrier IP67 Type 2 Hand 350mm
F3SG-2RE0350P30
F3SG6193G
F3SG2RE0350P30.1
OMRON
1 Pcs.
Automation > Light curtain
Barriers F3SG-R
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron Basic Safety Barrier IP67 Type 2 Hand 350mm, cataloged as F3SG-2RE0350P30, functions as a reliable safety light curtain configured to safeguard human operators from mechanical hazards on factory floors. Industrial engineers integrate these optical safety barriers around presses, stamping machines, and automated conveyors to comply with mandatory workplace safety regulations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Type of safety according to IEC 61496-1: 2
- Type of protection: Hand protection
- Detection capability: 30 mm
- Safety field height: 350 mm
- Beam gap: 20 mm
- Number of beams: 16
- Number of protected semiconductor outputs: 2
- Number of semiconductor outputs with signalling function: 0
- Maximum safety range: 20 m
- Minimum operating distance: 0.3 m
- Response time: 5 ms
- Type of switching output of the OSSD: PNP
- Key features: Fast response (ON/OFF applications), Simple wiring
- Scope of delivery: Transmitter and receiver
- Wavelength of the sensor: 870 nm
- Type of electric connection: Connector M12
More info
▲Specifications
| Type of safety according to IEC 61496-1 | 2 |
| Type of protection | Hand protection |
| Detection capability | 30 mm |
| Safety field height | 350 mm |
| Beam gap | 20 mm |
| Number of beams | 16 |
| Number of protected semiconductor outputs | 2 |
| Number of semiconductor outputs with signalling function | 0 |
| Maximum safety range | 20 m |
| Minimum operating distance | 0.3 m |
| Response time | 5 ms |
| Cascadable | |
| With muting function | |
| With beam coding | |
| Type of switching output of the OSSD | PNP |
| Key features | Fast response (ON/OFF applications), Simple wiring |
| Suitable for safety functions | |
| Scope of delivery | Transmitter and receiver |
| Wavelength of the sensor | 870 nm |
| Type of electric connection | Connector M12 |
| Supply voltage DC | 19.2-28.8 V |
| Voltage type | DC |
| Max. output current at protected output | 300 mA |
| Degree of protection (IP) | IP67 |
| Ambient temperature | -10-55 °C |
| Overall length | 368 mm |
| Height of sensor | 35 mm |
| Width sensor | 35 mm |
