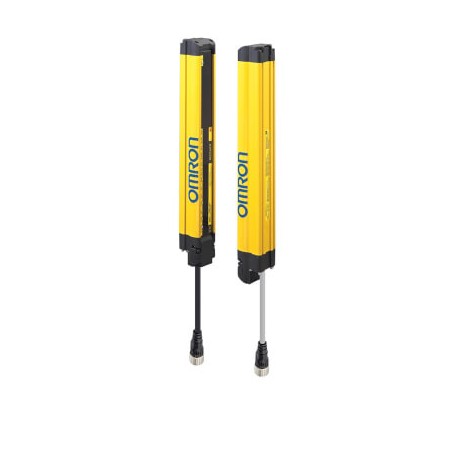

OMRON F3SG-2RA2510-30 F3SG-2RA2510-30 F3SG6110D F3SG2RA251030,1 OMRON Barrier advanced security IP67 Type 2 Hand 2510mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-2RA2510-30 F3SG6110D F3SG2RA251030,1 OMRON Barrier advanced security IP67 Type 2 Hand 2510mm

F3SG-2RA2510-30

F3SG6110D

F3SG2RA251030.1

OMRON

1 Pcs.

Barrier advanced security IP67 Type 2 Hand 2510mm Safety Sensor, F3SG-R Advanced, Type 2, 30 mm resolution, range 0.3 to 20.0 m, height 2510 mm, PNP/NPN

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

This Omron F3SG-2RA2510-30 advanced security barrier operates as a photoelectric safeguarding device built to protect personnel from hazardous machine movements on factory floors. Light curtains of this type continuously monitor access zones, cutting off electrical circuits whenever an obstruction is detected in the optical field. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP/NPN
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP67
  • Type of safety according to IEC 61496-1 (EF004105): 2
  • Type of electric connection (EF003961): Connector M12
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): Yes
  • Override possible (EF004061): Yes
  • With muting function (EF004057): Yes
  • Suitable for safety functions (EF001597): Yes
  • Reduced resolution (EF004095): Yes
  • With beam coding (EF004114): Yes
  • Fade-out possible (EF003955): Yes
  • With restart blockage (EF004054): Yes
  • Max. output current at protected output (EF004035): 300 mA
