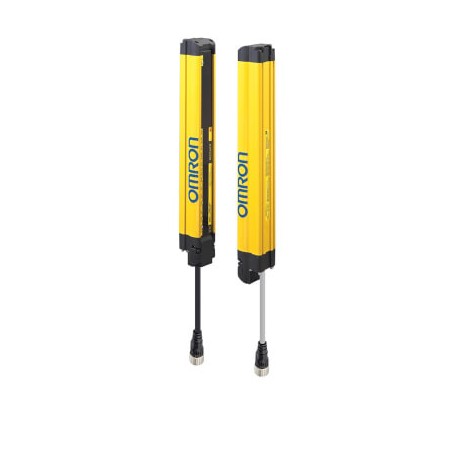

OMRON F3SG-2RA2190-30 F3SG-2RA2190-30 F3SG6106F F3SG2RA219030,1 OMRON Barrier advanced security IP67 Type 2 Hand 2190mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-2RA2190-30 F3SG6106F F3SG2RA219030,1 OMRON Barrier advanced security IP67 Type 2 Hand 2190mm

F3SG-2RA2190-30

F3SG6106F

F3SG2RA219030.1

OMRON

1 Pcs.

Barrier advanced security IP67 Type 2 Hand 2190mm Safety Sensor, F3SG-R Advanced, Type 2, 30 mm resolution, range 0.3 to 20.0 m, height 2190 mm, PNP/NPN

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing reliable hazard detection, the Omron F3SG-2RA2190-30 barrier advanced security unit halts industrial machinery whenever its light grid is interrupted. Facilities integrate these advanced safety barriers into perimeter guarding and robotic workcells to maintain high safety standards without sacrificing operational workflow. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP/NPN
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP67
  • Type of safety according to IEC 61496-1 (EF004105): 2
  • Type of electric connection (EF003961): Connector M12
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): Yes
  • Override possible (EF004061): Yes
  • With muting function (EF004057): Yes
  • Suitable for safety functions (EF001597): Yes
  • Reduced resolution (EF004095): Yes
  • With beam coding (EF004114): Yes
  • Fade-out possible (EF003955): Yes
  • With restart blockage (EF004054): Yes
  • Max. output current at protected output (EF004035): 300 mA
