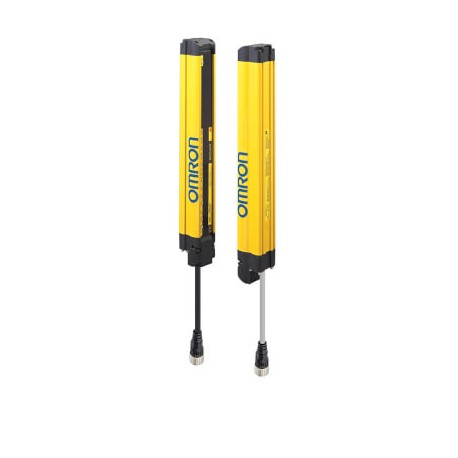

OMRON F3SG-2RA1680-14 F3SG-2RA1680-14 F3SG6045M F3SG2RA168014,1 OMRON Barrier security advanced, IP67, Type 2 Finger 1680mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-2RA1680-14 F3SG6045M F3SG2RA168014,1 OMRON Barrier security advanced, IP67, Type 2 Finger 1680mm

F3SG-2RA1680-14

F3SG6045M

F3SG2RA168014.1

OMRON

1 Pcs.

Barrier security advanced, IP67, Type 2 Finger 1680mm Safety Sensor, F3SG-R Advanced, Type 2, 14 mm resolution, range 0.3 to 10.0 m, height 1680 mm, PNP/NPN

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed for close-range hazard mitigation, the Omron F3SG-2RA1680-14 operates as an advanced safety light curtain used to detect finger intrusion near automated production tools. Factories deploy these sensitive optical barriers to maintain safe operating perimeters without unnecessarily impeding workflow efficiency.

Pricing, availability, and lead time are confirmed per enquiry through an RFQ.

  • Voltage type: DC
  • Type of switching output of the OSSD: PNP/NPN
  • Scope of delivery of the one-way system: Transmitter and receiver
  • Degree of protection (IP): IP67
  • Type of safety according to IEC 61496-1: 2
  • Type of electric connection: Connector M12
  • Operation agent-safety class: Safety class 3
  • Cascadable: Yes
  • Override possible: Yes
  • With muting function: Yes
  • Suitable for safety functions: Yes
  • Reduced resolution: Yes
  • With beam coding: Yes
  • Fade-out possible: Yes
  • With restart blockage: Yes
  • Max. output current at protected output: 300 mA
