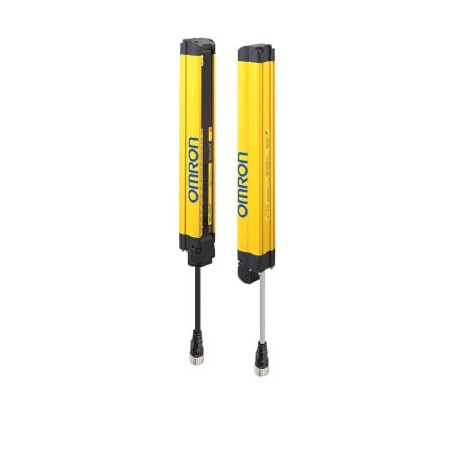

OMRON F3SG-2RA1520-14 F3SG-2RA1520-14 F3SG6043D F3SG2RA152014,1 OMRON Barrier security advanced, IP67, Type 2 Finger 1520mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-2RA1520-14 F3SG6043D F3SG2RA152014,1 OMRON Barrier security advanced, IP67, Type 2 Finger 1520mm

F3SG-2RA1520-14

F3SG6043D

F3SG2RA152014.1

OMRON

1 Pcs.

Barrier security advanced, IP67, Type 2 Finger 1520mm Safety Sensor, F3SG-R Advanced, Type 2, 14 mm resolution, range 0.3 to 10.0 m, height 1520 mm, PNP/NPN

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron Barrier security advanced, IP67, Type 2 Finger 1520mm (part number F3SG-2RA1520-14) functions as an industrial safety barrier designed to protect personnel from injury around dangerous moving mechanical components. Finger-protection light grids detect subtle intrusions into restricted zones to ensure compliance with machine safety regulations. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP/NPN
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP67
  • Type of safety according to IEC 61496-1 (EF004105): 2
  • Type of electric connection (EF003961): Connector M12
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): Yes
  • Override possible (EF004061): Yes
  • With muting function (EF004057): Yes
  • Suitable for safety functions (EF001597): Yes
  • Reduced resolution (EF0004095): Yes
  • With beam coding (EF004114): Yes
  • Fade-out possible (EF003955): Yes
  • With restart blockage (EF004054): Yes
  • Max. output current at protected output (EF004035): 300 mA
