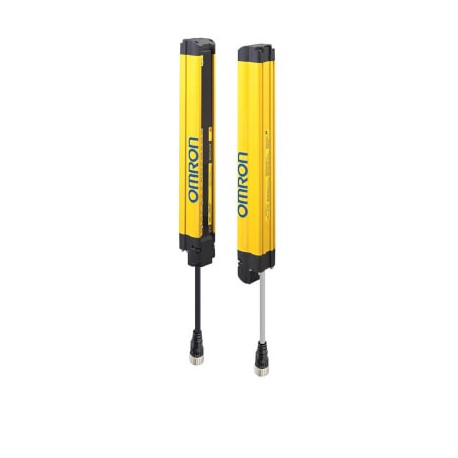

OMRON F3SG-2RA1230-30 F3SG-2RA1230-30 F3SG6094R F3SG2RA123030,1 OMRON Barrier advanced security IP67 Type 2 Hand 1230mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-2RA1230-30 F3SG6094R F3SG2RA123030,1 OMRON Barrier advanced security IP67 Type 2 Hand 1230mm

F3SG-2RA1230-30

F3SG6094R

F3SG2RA123030.1

OMRON

1 Pcs.

Barrier advanced security IP67 Type 2 Hand 1230mm Safety Sensor, F3SG-R Advanced, Type 2, 30 mm resolution, range 0.3 to 20.0 m, height 1230 mm, PNP/NPN

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Utilized across automated production lines, the Omron F3SG-2RA1230-30 barrier advanced security unit serves as an optoelectronic presence-sensing safeguarding device for hazardous machine access points. Safety light curtains establish an invisible infrared protective field that stops machinery instantly when an operator encroaches. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Voltage type (EF000187): DC
  • Type of switching output of the OSSD (EF003959): PNP/NPN
  • Scope of delivery of the one-way system (EF004032): Transmitter and receiver
  • Degree of protection (IP) (EF005474): IP67
  • Type of safety according to IEC 61496-1 (EF004105): 2
  • Type of electric connection (EF003961): Connector M12
  • Operation agent-safety class (EF003982): Safety class 3
  • Cascadable (EF000507): Yes
  • Override possible (EF004061): Yes
  • With muting function (EF004057): Yes
  • Suitable for safety functions (EF001597): Yes
  • Reduced resolution (EF004095): Yes
  • With beam coding (EF004114): Yes
  • Fade-out possible (EF003955): Yes
  • With restart blockage (EF004054): Yes
  • Max. output current at protected output (EF004035): 300 mA
