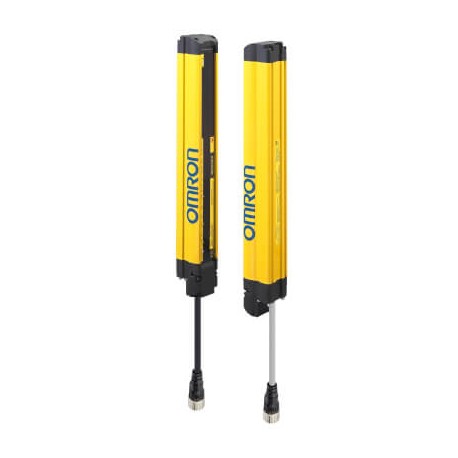

OMRON F3SG-2RA0750-30 F3SG-2RA0750-30 F3SG6088D F3SG2RA075030,1 OMRON Barrier advanced security IP67 Type 2 Hand 750mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-2RA0750-30 F3SG6088D F3SG2RA075030,1 OMRON Barrier advanced security IP67 Type 2 Hand 750mm

F3SG-2RA0750-30

F3SG6088D

F3SG2RA075030.1

OMRON

1 Pcs.

Barrier advanced security IP67 Type 2 Hand 750mm Safety Sensor, F3SG-R Advanced, Type 2, 30 mm resolution, range 0.3 to 20.0 m, height 750 mm, PNP/NPN

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron barrier advanced security IP67 Type 2 Hand 750mm functions as an optoelectronic safeguard to protect personnel near industrial machinery. Safety light barriers detect intrusion into hazardous zones by interrupting invisible infrared beams, instantly triggering a machine stop signal to prevent operator injury. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of safety acc. IEC 61496-1: 2
  • Type of sensor: Hand detection
  • Detection capability: 30 mm
  • Safety field height: 750 mm
  • Beam gap: 20 mm
  • Number of beams: 36
  • Number of protected semiconductor outputs: 2
  • Number of semiconductor outputs with signalling function: 1
  • Maximum safety range: 20 m
  • Minimum operating distance: 0.3 m
  • Time of reaction: 8 ms
  • Type of switching output of the OSSD: PNP/NPN
  • Communication port(s): USB
  • Scope of delivery: Transmitter and receiver
  • Wavelength of the sensor: 870 nm
  • Type of electric connection: Connector M12

More info

▲

Specifications

Type of safety acc. IEC 61496-12
Type of sensorHand detection
Detection capability30 mm
Safety field height750 mm
Beam gap20 mm
Number of beams36
Number of protected semiconductor outputs2
Number of semiconductor outputs with signalling function1
Maximum safety range20 m
Minimum operating distance0.3 m
Time of reaction8 ms
Cascadable
With muting function
With beam coding
Type of switching output of the OSSDPNP/NPN
Communication port(s)USB
Suitable for safety functions
Scope of deliveryTransmitter and receiver
Wavelength of the sensor870 nm
Type of electric connectionConnector M12
Supply voltage DC19.2-28.8 V
Voltage typeDC
Max. output current at protected output300 mA
Degree of protection (IP)IP67
Ambient temperature-10-55 °C
Overall length768 mm
Height of sensor35 mm
Width sensor35 mm

Accessories

F39-JG3A-LSafety sensor accessory, F3SG-R Advanced, emitter cable M12 5-pin, female, 3 m
