F3SG-2RA0720-14 F3SG6033G F3SG2RA072014,1 OMRON Barrier security advanced, IP67, Type 2 Finger 720mm
F3SG-2RA0720-14
F3SG6033G
F3SG2RA072014.1
OMRON
1 Pcs.
Automation > Light curtain
Barriers F3SG-R
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview

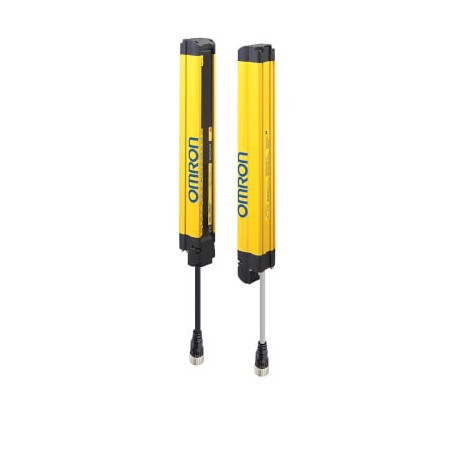

Omron F3SG-2RA0720-14 is an advanced security barrier designed to safeguard operator workstations and prevent injury by shutting down automated systems whenever the protective light grid is interrupted.
Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- Voltage type (EF000187): DC
- Type of switching output of the OSSD (EF003959): PNP/NPN
- Scope of delivery of the one-way system (EF004032): Transmitter and receiver
- Degree of protection (IP) (EF005474): IP67
- Type of safety according to IEC 61496-1 (EF004105): 2
- Type of electric connection (EF003961): Connector M12
- Operation agent-safety class (EF003982): Safety class 3
- Cascadable (EF000507): Yes
- Override possible (EF004061): Yes
- With muting function (EF004057): Yes
- Suitable for safety functions (EF001597): Yes
- Reduced resolution (EF004095): Yes
- With beam coding (EF004114): Yes
- Fade-out possible (EF003955): Yes
- With restart blockage (EF004054): Yes
- Max. output current at protected output (EF004035): 300 mA
