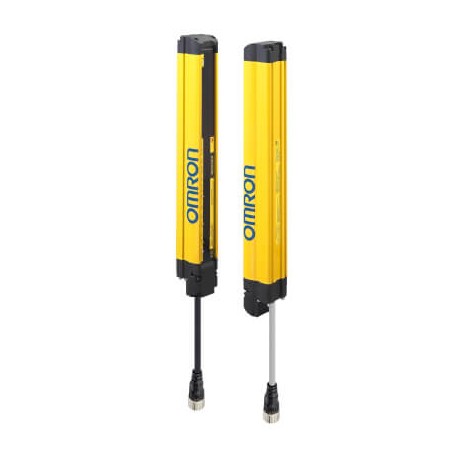

OMRON F3SG-2RA0350-30 F3SG-2RA0350-30 F3SG6083C F3SG2RA035030,1 OMRON Barrier advanced security IP67 Type 2 Hand-350mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

F3SG-2RA0350-30 F3SG6083C F3SG2RA035030,1 OMRON Barrier advanced security IP67 Type 2 Hand-350mm

F3SG-2RA0350-30

F3SG6083C

F3SG2RA035030.1

OMRON

1 Pcs.

Barrier advanced security IP67 Type 2 Hand-350mm Safety Sensor, F3SG-R Advanced, Type 2, 30 mm resolution, range 0.3 to 20.0 m, height 350 mm, PNP/NPN

Automation > Light curtain
Barriers F3SG-R

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Type of safety according to IEC 61496-12Type of protectionHand protectionDetection capability30 mmSafety field height350 mmBeam gap20 mmNumber of beams16Number of protected semiconductor outputs2Number of semiconductor outputs with signalling function1Maximum safety range20 mMinimum operating distance0.3 mResponse time8 msCascadableWith muting functionWith beam codingType of switching output of the OSSDPNP/NPNCommunication port(s)USBSuitable for safety functionsScope of deliveryTransmitter and receiverWavelength of the sensor870 nmConnection methodM12 pigtail Smartclick connectorSupply voltage DC19.2-28.8 VVoltage typeDCMax. output current at protected output300 mADegree of protection (IP)IP67Ambient temperature-10-55 °COverall length of sensor368 mmHeight of sensor35 mmWidth of sensor35 mm
ETIM for 674113 Sensors (EC002549)
Feature Name Feature Value
Explosion safety category for dust (EF003998) None
Voltage type (EF000187) DC
Type of switching output of the OSSD (EF003959) PNP/NPN
Scope of delivery of the one-way system (EF004032) Transmitter and receiver
Degree of protection (NEMA) (EF011959) Other
Degree of protection (IP) (EF005474) IP67
Type of safety according to IEC 61496-1 (EF004105) 2
Type of interface for safety communication (EF003956) Other
Type of electric connection (EF003961) Connector M12
Operation agent-safety class (EF003982) Safety class 3
Explosion safety category for gas (EF003997) None
Cascadable (EF000507) Yes
Override possible (EF004061) Yes
With muting function (EF004057) Yes
With monitoring function downstream switching devices (EF004052) No
Suitable for safety functions (EF001597) Yes
Reduced resolution (EF004095) Yes
With beam coding (EF004114) Yes
Fade-out possible (EF003955) Yes
With restart blockage (EF004054) Yes
Max. output current at protected output (EF004035) 300 mA
Number of protected contact energized outputs (EF003952) 0
Number of semiconductor outputs with signalling function (EF003945) 1
Safety field height (EF004103) 350 mm
Wavelength of the sensor (EF004132) 870 nm
Detection capability for test bodies (EF003991) 30 mm
Resolution of the light curtain (EF006784) 20 mm
Response time (EF004094) 8 ms
Number of protected semiconductor outputs (EF003951) 2
Transmission range of the safety field (EF004098) 20 m
Switching voltage of OSSD at state "high" (EF004102) 24 V
Width sensor (EF007094) 35 mm
Height of sensor (EF007283) 35 mm
Length of sensor (EF007334) 368 mm
Number of contact energized outputs with signalling function (EF003946) 0
Rated control supply voltage DC (EF003980) 19.2 V
Ambient temperature (EF002386) -10 °C
