View larger
Images are for illustrative purposes only. Please refer to data sheet for details

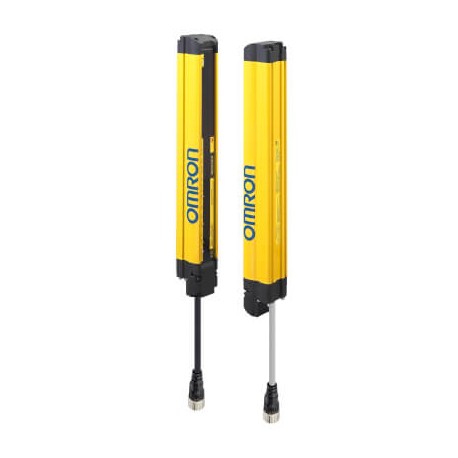

F3SG-2RA0320-14 F3SG6028M F3SG2RA032014,1 OMRON Barrier security advanced, IP67, Type 2 Finger 320mm
F3SG-2RA0320-14
F3SG6028M
F3SG2RA032014.1
OMRON
1 Pcs.
Barrier security advanced, IP67, Type 2 Finger 320mm
Safety Sensor, F3SG-R Advanced, Type 2, 14 mm resolution, range 0.3 to 10.0 m, height 320 mm, PNP/NPN
Automation > Light curtain
Barriers F3SG-R
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲
Type of safety according to IEC 61496-12Type of protectionFinger protectionDetection capability14 mmSafety field height320 mmBeam gap10 mmNumber of beams31Number of protected semiconductor outputs2Number of semiconductor outputs with signalling function1Maximum safety range10 mMinimum operating distance0.3 mResponse time8 msCascadableWith muting functionWith beam codingType of switching output of the OSSDPNP/NPNCommunication port(s)USBSuitable for safety functionsScope of deliveryTransmitter and receiverWavelength of the sensor870 nmConnection methodM12 pigtail Smartclick connectorSupply voltage DC19.2-28.8 VVoltage typeDCMax. output current at protected output300 mADegree of protection (IP)IP67Ambient temperature-10-55 °COverall length of sensor368 mmHeight of sensor35 mmWidth of sensor35 mm
| Feature Name | Feature Value |
|---|---|
| Explosion safety category for dust (EF003998) | None |
| Voltage type (EF000187) | DC |
| Type of switching output of the OSSD (EF003959) | PNP/NPN |
| Scope of delivery of the one-way system (EF004032) | Transmitter and receiver |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP67 |
| Type of safety according to IEC 61496-1 (EF004105) | 2 |
| Type of interface for safety communication (EF003956) | Other |
| Type of electric connection (EF003961) | Connector M12 |
| Operation agent-safety class (EF003982) | Safety class 3 |
| Explosion safety category for gas (EF003997) | None |
| Cascadable (EF000507) | Yes |
| Override possible (EF004061) | Yes |
| With muting function (EF004057) | Yes |
| With monitoring function downstream switching devices (EF004052) | No |
| Suitable for safety functions (EF001597) | Yes |
| Reduced resolution (EF004095) | Yes |
| With beam coding (EF004114) | Yes |
| Fade-out possible (EF003955) | Yes |
| With restart blockage (EF004054) | Yes |
| Max. output current at protected output (EF004035) | 300 mA |
| Number of protected contact energized outputs (EF003952) | 0 |
| Number of semiconductor outputs with signalling function (EF003945) | 1 |
| Safety field height (EF004103) | 320 mm |
| Wavelength of the sensor (EF004132) | 870 nm |
| Detection capability for test bodies (EF003991) | 14 mm |
| Resolution of the light curtain (EF006784) | 10 mm |
| Response time (EF004094) | 8 ms |
| Number of protected semiconductor outputs (EF003951) | 2 |
| Transmission range of the safety field (EF004098) | 10 m |
| Switching voltage of OSSD at state "high" (EF004102) | 24 V |
| Width sensor (EF007094) | 35 mm |
| Height of sensor (EF007283) | 35 mm |
| Length of sensor (EF007334) | 368 mm |
| Number of contact energized outputs with signalling function (EF003946) | 0 |
| Rated control supply voltage DC (EF003980) | 19.2 V |
| Ambient temperature (EF002386) | -10 °C |
