View larger
Images are for illustrative purposes only. Please refer to data sheet for details

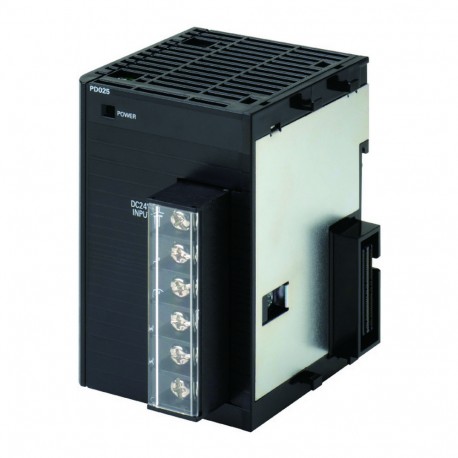

CJ1W-PD025 CJ1W0086R 136016 OMRON Power Supply 24Vdc 25W
CJ1W-PD025
CJ1W0086R
CJ1WPD025
OMRON
1 Pcs.
Power supply 24vdc 25W
Power supply unit, 24 VDC, output capacity: 25 W
Automation > PLC system power supply
CJ1
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲Specifications
| Type of module | Power supply |
| Type of voltage (input voltage) | DC |
| Power output | 25 W |
| Supply voltage DC | 21.6-26.4 V |
| Height | 90 mm |
| Width | 60 mm |
| Depth | 81.6 mm |
| Weight | 335 g |
| Feature Name | Feature Value |
|---|---|
| Type of voltage (input voltage) (EF003033) | DC |
| Type of output voltage (EF008222) | DC |
| Redundancy (EF003156) | No |
| Suitable for safety functions (EF001597) | No |
| Max. output current AC 50 Hz (EF007351) | 0 A |
| Max. input current AC 50 Hz (EF007360) | 0 A |
| Max. input current AC 60 Hz (EF007361) | 0 A |
| Max. input current DC (EF007362) | 2.1 A |
| Max. output current DC (EF007353) | 5 A |
| Max. output current AC 60 Hz (EF007352) | 0 A |
| Width (EF000008) | 60 mm |
| Height (EF000040) | 90 mm |
| Power output (EF003034) | 25 W |
| Depth (EF000049) | 81.6 mm |
| Output voltage DC (EF007001) | 5 V |
| Input voltage DC (EF007120) | 21.6 V |
