> OMRON > Control Systems > CJ1 > CJ1W0310H

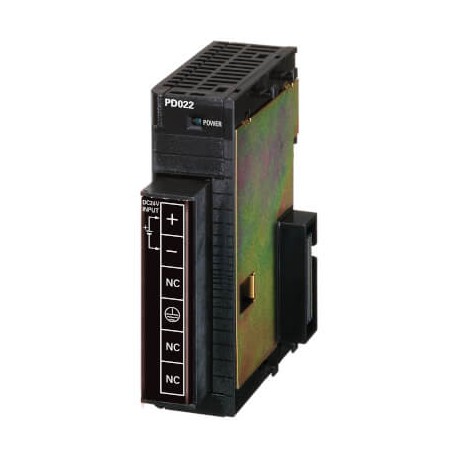

OMRON CJ1W-PD022 CJ1W-PD022 CJ1W0310H 315604 OMRON Power Supply 24Vdc 19.6W View larger
Images are for illustrative purposes only. Please refer to data sheet for details

CJ1W-PD022 CJ1W0310H 315604 OMRON Power Supply 24Vdc 19.6W

CJ1W-PD022

CJ1W0310H

CJ1WPD022.1

OMRON

1 Pcs.

Power supply 24vdc 19,6 W Power supply unit, 24 VDC, output capacity: 19.6 W

Automation > PLC system power supply
CJ1

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Type of modulePower supplyType of voltage (input voltage)DCPower output19.6 WSupply voltage DC21.6-26.4 VProduct Height (unpacked)90 mmProduct Width (unpacked)27 mmProduct Depth (unpacked)81.6 mmProduct Weight (unpacked)130 g
ETIM for 315604 PLC's (EC000599)
Feature Name Feature Value
Type of voltage (input voltage) (EF003033) DC
Type of output voltage (EF008222) DC
Redundancy (EF003156) No
Suitable for safety functions (EF001597) No
Max. output current AC 50 Hz (EF007351) 0 A
Max. input current AC 50 Hz (EF007360) 0 A
Max. input current AC 60 Hz (EF007361) 0 A
Max. input current DC (EF007362) 1.5 A
Max. output current DC (EF007353) 2 A
Max. output current AC 60 Hz (EF007352) 0 A
Width (EF000008) 27 mm
Height (EF000040) 90 mm
Power output (EF003034) 19.6 W
Depth (EF000049) 81.6 mm
Output voltage DC (EF007001) 5 V
Input voltage DC (EF007120) 21.6 V

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
