View larger
Images are for illustrative purposes only. Please refer to data sheet for details

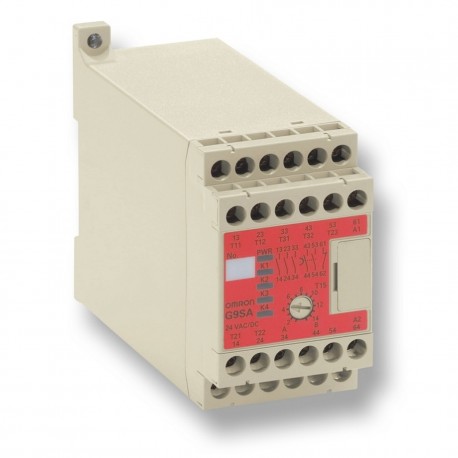

G9SA-TH301 AC/DC24 G9SA6006R G9SATH301ACDC24 OMRON Security module Bimanual 3PST-NA SPST-NC 24vac/dc
G9SA-TH301 AC/DC24
G9SA6006R
G9SATH301ACDC24
OMRON
1 Pcs.
Security module Bimanual 3PST-NA SPST-NC 24vac/dc
Two-hand controller, 3PST-NO (Category 4), 5 A, SPST-NC aux, 2 channel input
Automation > Device for monitoring of safety-related circuits
G9SA/B
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- 45mm-wide housing, expansion units are 17.5mm wide
- Safe OFF-delay timer
- Simple expansion connection
- Certification up to PLe according to EN ISO 13849-1 depending on the application
Specifications & ordering info
Ordering information
Emergency-stop units
Emergency-stop OFF-delay units
Two-hand controller
Expansion unit
The expansion unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301.
Expansion units with OFF-delay outputs
The expansion unit connects to a G9SA-301, G9SA-501, G9SA-321, or G9SA-TH301.
Specifications
Power input
24 VAC/VDC: 24 VAC, 50/60 Hz, or 24 VDC | |||
Inputs
Contacts
Characteristics
Response time1 | ||||
Operating: -25 to 55°C (with no icing or condensation) | ||||
| Feature Name | Feature Value |
|---|---|
| Performance level according to EN ISO 13849-1 (EF007399) | Level e |
| Type of safety according to IEC 61496-1 (EF004105) | 4 |
| Model (EF000010) | Basic device |
| SIL according to IEC 61508 (EF009889) | 3 |
| Voltage type (supply voltage) (EF002991) | AC/DC |
| Stop category according to IEC 60204 (EF007498) | Other |
| Voltage type (operating voltage) (EF005294) | AC/DC |
| Evaluation inputs (EF008245) | 2-channel |
| Type of electric connection (EF003961) | Screw connection |
| Suitable for monitoring of proximity switches (EF007267) | Yes |
| Suitable for monitoring of optoelectronic protection equipment (EF007269) | Yes |
| Suitable for monitoring of valves (EF007272) | Yes |
| Suitable for monitoring of position switches (EF007270) | Yes |
| Suitable for rail mounting (EF003972) | Yes |
| With approval for TÜV (EFDE0031) | No |
| Suitable for monitoring of emergency-stop circuits (EF007268) | Yes |
| With detachable clamps (EF003340) | No |
| With start input (EF003342) | No |
| With muting function (EF004057) | No |
| With approval according to UL (EF001783) | Yes |
| Suitable for monitoring of tactile sensors (EF007271) | Yes |
| With feedback circuit (EF003343) | No |
| Suitable for monitoring of magnetic switches (EF007266) | Yes |
| With approval for BG BIA (EF004145) | No |
| Number of outputs, signalling function, undelayed, with contact (EF003348) | 1 |
| Number of outputs, safety related, delayed, with contact (EF003345) | 0 |
| Number of outputs, signalling function, delayed, with contact (EF003349) | 0 |
| Width (EF000008) | 45 mm |
| Rated switch current (EF006706) | 5 A |
| Depth (EF000049) | 111 mm |
| Number of outputs, safety related, undelayed, semiconductors (EF003346) | 0 |
| Number of outputs, safety related, delayed, semiconductors (EF003347) | 0 |
| Number of outputs, signalling function, delayed, semiconductors (EF003351) | 0 |
| Height (EF000040) | 76 mm |
| Number of outputs, safety related, undelayed, with contact (EF003344) | 3 |
| Number of outputs, signalling function, undelayed, semiconductors (EF003350) | 0 |
| Supply voltage AC 60 Hz (EF007533) | 20.4 V |
| Supply voltage DC (EF007534) | 20.4 V |
| Supply voltage AC 50 Hz (EF007532) | 20.4 V |
| Operating voltage DC (EF008208) | 0 V |
| Operating voltage AC 50 Hz (EF008206) | 0 V |
| Operating voltage AC 60 Hz (EF008207) | 0 V |
