OMRON NE1A-EDR01 NE1A-EDR01 NE1A0012M NE1AEDR01 OMRON Router Ethernet/IP-DeviceNet View larger
Images are for illustrative purposes only. Please refer to data sheet for details

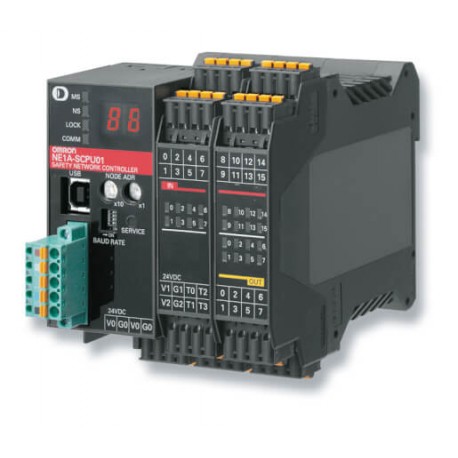

NE1A-EDR01 NE1A0012M NE1AEDR01 OMRON Router Ethernet/IP-DeviceNet

NE1A-EDR01

NE1A0012M

NE1AEDR01

OMRON

1 Pcs.

Router Ethernet/IP-DeviceNet

Automation > Device for monitoring of safety-related circuits
DeviceNet Security

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Designed to facilitate seamless communication across industrial automation architectures, the Omron NE1A-EDR01 functions as an Ethernet/IP to DeviceNet router for safety networks. Network routers and communication gateways bridge disparate fieldbuses, allowing safety-related control data to be transmitted reliably across complex plant-wide automation systems. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Ethernet/IP and DeviceNet safety: NE1A-SCPU01-EIP
  • Ethernet/IP and DeviceNet safety: NE1A-SCPU02-EIP
  • Safety network configurator: Installation disk (CD-ROM) IBM PC/AT compatible Windows 2000, Windows XP, Windows 7
  • Network router: Ethernet/IP - DeviceNet router
  • Unit power supply voltage: 20.4 to 26.4 VDC (24 VDC -15% +10%)
  • I/O power supply voltage Consumption current: Communications power supply
  • Internal circuit power supply: 24 VDC, 230 mA
  • Mounting method: 35-mm DIN track
  • Ambient operating temperature: -10 to 55°C
  • Ambient storage temperature: -40 to 70°C
  • Degree of protection: IP20 (IEC 60529)
  • ON voltage: 11 VDC min. between each input terminal and G1
  • OFF voltage: 5 VDC max. between each input terminal and G1
  • OFF current: 1 mA max.
  • Input current: 4.5 mA
  • Rated output current: 0.5 A max. per output

More info

▲
  • Removable cage-clamp terminals for easy installation
  • Predefined and certified function blocks for easy programming
  • LED display and status LEDs for advanced diagnostics
  • System status on DeviceNet for easy troubleshooting and predictive maintenance
  • Easy scalability through the addition of DeviceNet safety devices

Specifications & ordering info

Ordering information

Appearance

Appearance description

Interface

Order code

Safety network
controller

16 PNP inputs

8 PNP outputs

4 test outputs

254 function block programming

removable cage clamp terminals

USB and
DeviceNet safety

NE1A-SCPU01-V1

Ethernet/IP and
DeviceNet safety

NE1A-SCPU01-EIP

40 PNP inputs

8 PNP outputs

8 test outputs

254 function block programming

removable cage clamp terminals

USB and

DeviceNet safety

NE1A-SCPU02

Ethernet/IP and

DeviceNet safety

NE1A-SCPU02-EIP

Software

Appearance

Appearance description

Order code

Safety network
configurator

Installation disk (CD-ROM)

IBM PC/AT compatible

Windows 2000, Windows XP, Windows 7

WS02-CFSC1-E

Accessories

Appearance

Appearance description

Order code

Network router

Ethernet/IP - DeviceNet router

NE1A-EDR01

Programming console

CF-Card slot to store configuration

USB-Interface for maintenance

Touchscreen for easy troubleshooting

NE1A-HDY

Specifications

General specifications

DeviceNet communications power supply voltage

11 to 25 VDC
(supplied from communications connector)

Unit power supply voltage

20.4 to 26.4 VDC
(24 VDC -15% +10%)

I/O power supply voltage

Consumption
current

Communications power supply

24 VDC, 15 mA

Internal circuit power supply

24 VDC, 230 mA

Mounting method

35-mm DIN track

Ambient operating temperature

-10 to 55°C

Ambient storage temperature

-40 to 70°C

Degree of protection

IP20 (IEC 60529)

Safety input specifications

Input type

Sinking inputs (PNP)

ON voltage

11 VDC min. between each input terminal and G1

OFF voltage

5 VDC max. between each input terminal and G1

OFF current

1 mA max.

Input current

4.5 mA

Safety output specifications

Output type

Sourcing outputs (PNP)

Rated output current

0.5 A max. per output

Residual voltage

1.2 V max. between each output terminal and V2

Test output specifications

Output type

Sourcing outputs (PNP)

Rated output current

0.7 A max. per output (see note.)

Residual voltage

1.2 V max. between each output terminal and V1


Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
