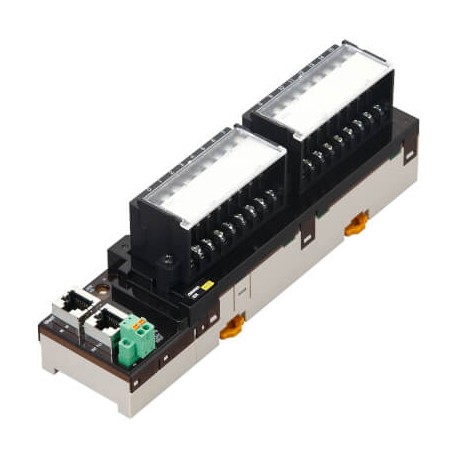

OMRON GX-MD1622 GX-MD1622 GX 5023E GXMD1622 OMRON Module EtherCAT 8/8 I/O PNP 3-terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GX-MD1622 GX 5023E GXMD1622 OMRON Module EtherCAT 8/8 I/O PNP 3-terminal

GX-MD1622

GX 5023E

GXMD1622

OMRON

1 Pcs.

Module EtherCAT 8/8 I/O PNP 3-terminal EtherCAT digital I/O unit, 8 x inputs + 8 x outputs, PNP, 3-wire

Automation > Fieldbus, decentr. periphery - digital I/O module
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Configured for high-speed industrial networks, the Omron GX-MD1622 GX 5023E GXMD1622 OMRON Module EtherCAT 8/8 I/O PNP 3-terminal processes mixed digital signals while communicating seamlessly over fieldbus protocols. EtherCAT I/O modules are essential elements in high-performance automation setups, providing precise synchronization for factory machinery and robotics. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of digital output (EF003601): Transistor
  • Type of electric connection (EF003961): Screw connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No

More info

▲
Communication port(s)EtherCAT SlaveType of moduleDigital I/OI/O connection typeScrewConnection method3-wireNumber of digital inputs8Digital input typePNPPermitted voltage at input0-26.4 VNumber of digital outputs8Digital output typePNPPermitted voltage at output0-26.4 VOutput current0.5 AShort-circuit protected outputsNumber of IOV (V+) terminals18Number of IOG (V-) terminals18Number of COM terminals0I/O systemNoneDegree of protection (IP)IP20Product Height (unpacked)52 mmProduct Width (unpacked)200 mmProduct Depth (unpacked)68.9 mmProduct Weight (unpacked)470 g
