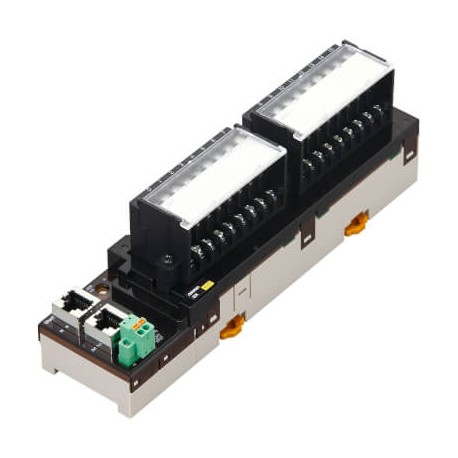

OMRON GX-MD1612 GX-MD1612 GX 5022G GXMD1612 OMRON Module EtherCAT 8/8 I/O NPN 3-terminal View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GX-MD1612 GX 5022G GXMD1612 OMRON Module EtherCAT 8/8 I/O NPN 3-terminal

GX-MD1612

GX 5022G

GXMD1612

OMRON

1 Pcs.

Module EtherCAT 8/8 I/O NPN 3-terminal EtherCAT 8/8 I/O NPN 3-terminal module EtherCAT digital I/O unit, 8 x inputs + 8 x outputs, NPN, 3-wire

Automation > Fieldbus, decentr. periphery - digital I/O module
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Providing integrated network performance, the Omron GX-MD1612 module EtherCAT 8/8 I/O NPN 3-terminal connects distributed field peripherals directly to high-speed automation buses. EtherCAT slave modules ensure deterministic data exchange for synchronized motion and control tasks.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of digital output (EF003601): Transistor
  • Type of electric connection (EF003961): Screw connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No

More info

▲
Communication port(s)EtherCAT SlaveType of moduleDigital I/OI/O connection typeScrewConnection method3-wireNumber of digital inputs8Digital input typeNPNPermitted voltage at input0-26.4 VNumber of digital outputs8Digital output typeNPNPermitted voltage at output0-26.4 VOutput current0.5 AShort-circuit protected outputsNumber of IOV (V+) terminals18Number of IOG (V-) terminals18Number of COM terminals0I/O systemNoneDegree of protection (IP)IP20Product Height (unpacked)52 mmProduct Width (unpacked)200 mmProduct Depth (unpacked)68.9 mmProduct Weight (unpacked)370 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
