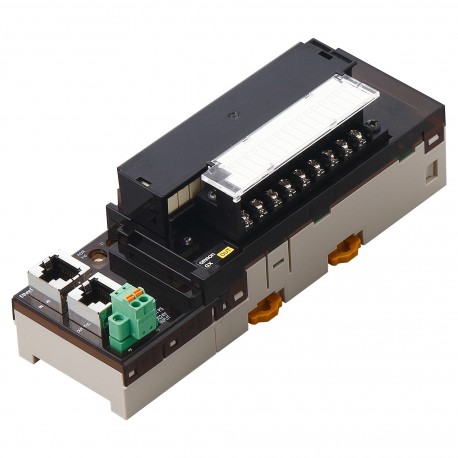

OMRON GX-OC1601 GX-OC1601 GX 5019G GXOC1601 OMRON Module EtherCAT 16 Relay Outputs View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GX-OC1601 GX 5019G GXOC1601 OMRON Module EtherCAT 16 Relay Outputs

GX-OC1601

GX 5019G

GXOC1601

OMRON

1 Pcs.

Module EtherCAT 16 Relay Outputs EtherCAT module 16 Relay outputs EtherCAT digital I/O unit, 16 relay x outputs, 1-wire, expandable

Automation > Fieldbus, decentr. periphery - digital I/O module
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

The Omron GX-OC1601 operates as an EtherCAT module housing relay outputs to interface high-capacity control circuits with industrial bus networks. Network-connected output modules are deployed extensively in automated manufacturing lines to switch heavy loads reliably via software commands.

Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): AC/DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of digital output (EF003601): Relay
  • Type of electric connection (EF003961): Screw connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No

More info

▲
Communication port(s)EtherCAT SlaveType of moduleDigital I/OI/O connection typeScrewConnection method1-wireNumber of digital inputs0Digital input typeNoneNumber of digital outputs16Digital output typeRelay NOShort-circuit protected outputsNumber of IOV (V+) terminals0Number of IOG (V-) terminals0Number of COM terminals2I/O systemI/O Expansion LinkDegree of protection (IP)IP20Product Height (unpacked)54 mmProduct Width (unpacked)160 mmProduct Depth (unpacked)57.6 mmProduct Weight (unpacked)290 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
