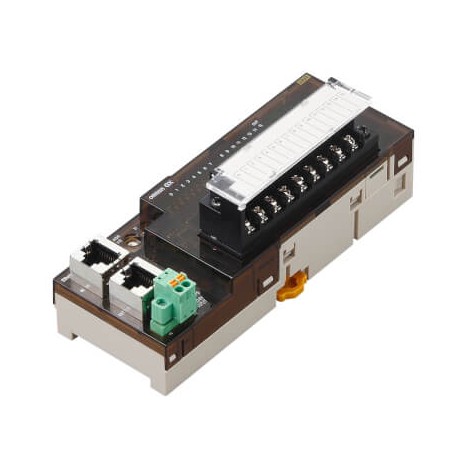

OMRON GX-OD1621 GX-OD1621 GX 5018R GXOD1621 OMRON Module EtherCAT up to 16 Outputs PNP 2-terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GX-OD1621 GX 5018R GXOD1621 OMRON Module EtherCAT up to 16 Outputs PNP 2-terminals

GX-OD1621

GX 5018R

GXOD1621

OMRON

1 Pcs.

Module EtherCAT up to 16 Outputs PNP 2-terminals EtherCAT digital I/O unit, 16 x outputs, PNP, 1-wire, expandable

Automation > Fieldbus, decentr. periphery - digital I/O module
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

Omron GX-OD1621 Module EtherCAT up to 16 Outputs PNP 2-terminals units function as high-speed digital output blocks built to handle control commands within advanced industrial networks. This module routes controller signals directly to multiple connected actuators while supporting fast communication protocols. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Type of output voltage (EF008222): DC
  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of digital output (EF003601): Transistor
  • Type of electric connection (EF003961): Screw connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No

More info

▲
Communication port(s)EtherCAT SlaveType of moduleDigital I/OI/O connection typeScrewConnection method1-wireNumber of digital inputs0Digital input typeNoneNumber of digital outputs16Digital output typePNPPermitted voltage at output0-26.4 VOutput current0.5 AShort-circuit protected outputsNumber of IOV (V+) terminals1Number of IOG (V-) terminals1Number of COM terminals0I/O systemI/O Expansion LinkDegree of protection (IP)IP20Product Height (unpacked)52 mmProduct Width (unpacked)135 mmProduct Depth (unpacked)57.1 mmProduct Weight (unpacked)190 g
