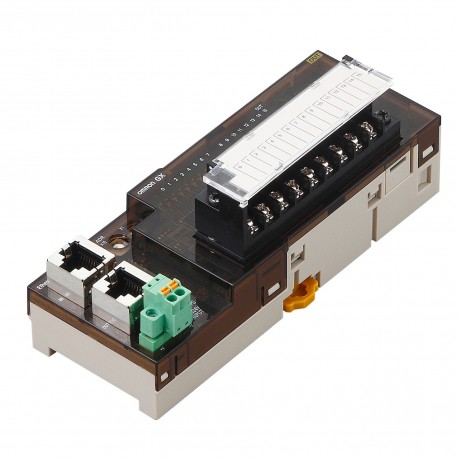

OMRON GX-ID1611 GX-ID1611 GX 5013H GXID1611 OMRON Module EtherCAT 16 Inputs NPN 2-terminals View larger
Images are for illustrative purposes only. Please refer to data sheet for details

GX-ID1611 GX 5013H GXID1611 OMRON Module EtherCAT 16 Inputs NPN 2-terminals

GX-ID1611

GX 5013H

GXID1611

OMRON

1 Pcs.

Module EtherCAT 16 Inputs NPN 2-terminals EtherCAT module 16 NPN 2-terminal inputs EtherCAT digital I/O unit, 16 x inputs, NPN, 1-wire, expandable

Automation > Fieldbus, decentr. periphery - digital I/O module
Other

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.

Request Quote

Product Overview

An Omron module EtherCAT 16 inputs NPN 2-terminals, listed with part number GX-ID1611, functions within machine automation architectures to gather multiple digital input signals for real-time processing. Input modules translate physical field sensor states into readable data for the control system. Pricing, availability and lead time are confirmed per enquiry through an RFQ.

  • Degree of protection (IP) (EF005474): IP20
  • Performance level according to EN ISO 13849-1 (EF007399): Level a
  • Voltage type (supply voltage) (EF002991): DC
  • Type of voltage (input voltage) (EF003033): DC
  • Type of electric connection (EF003961): Screw connection
  • Radio standard UMTS (EF008525): No
  • Supporting protocol for EtherCAT (EF017564): Yes
  • Appendant operation agent (Ex ib) (EF004142): No
  • Supporting protocol for other bus systems (EF003062): Yes
  • Supporting protocol for SERCOS (EF006657): No
  • IO link master (EF007298): No
  • Rack-assembly possible (EF007018): No
  • Supporting protocol for KNX (EF003055): No
  • Supporting protocol for LON (EF003017): No
  • Supporting protocol for SUCONET (EF003060): No
  • Supporting protocol for EtherNet/IP (EF007521): No

More info

▲
Communication port(s)EtherCAT SlaveType of moduleDigital I/OI/O connection typeScrewConnection method1-wireNumber of digital inputs16Digital input typeNPNPermitted voltage at input0-26.4 VNumber of digital outputs0Digital output typeNoneShort-circuit protected outputsNumber of IOV (V+) terminals1Number of IOG (V-) terminals1Number of COM terminals0I/O systemI/O Expansion LinkDegree of protection (IP)IP20Product Height (unpacked)52 mmProduct Width (unpacked)135 mmProduct Depth (unpacked)57.1 mmProduct Weight (unpacked)180 g

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
