OMRON 3G3AX-PG01 3G3AX-PG01 315471 3G3AXPG01 OMRON Card feedback encoder RX 100khz (line driver) View larger
Images are for illustrative purposes only. Please refer to data sheet for details

3G3AX-PG01 315471 3G3AXPG01 OMRON Card feedback encoder RX 100khz (line driver)

3G3AX-PG01

315471

3G3AXPG01

OMRON

1 Pcs.

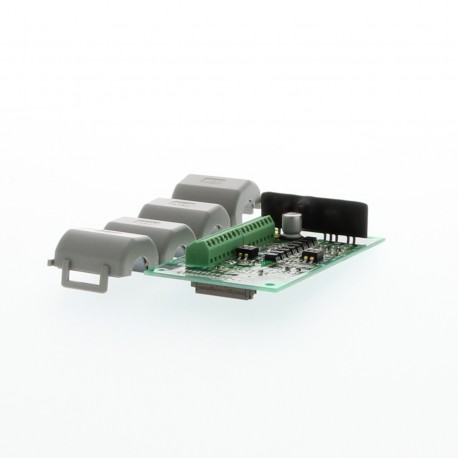

Card feedback encoder RX 100khz (line driver) RX 100khz encoder feedback card (line driver)

Automation > Accessories/spare parts for frequency controller
Accessories

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Ratings up to 132 kW
  • Full torque at 0 Hz in closed loop
  • Sensor-less and vector closed-loop control
  • Built-in EMC filter, logic programming and application functionality
  • Fieldbus communications: Modbus, DeviceNet, PROFIBUS, MECHATROLINK-II, EtherCAT and CompoNet
  • Regenerative solutions as option
  • CE, cULus, RoHS

Specifications & ordering info

Ordering information


3G3RX

Specifications

Order code

Specifications

Order code

Voltage class

Constant torque

Variable torque

Standard

Voltage class

Constant torque

Variable torque

Standard

Max. motor kW

Rated current A

Max. motor KW

Rated current A

Max. motor kW

Rated current A

Max. motor KW

Rated current A

Three-phase
200 V

0.4

3.0

0.75

3.7

3G3RX-A2004-E1F

Three-phase
400 V

0.4

1.5

0.75

1.9

3G3RX-A4004-E1F

0.75

5.0

1.5

6.3

3G3RX-A2007-E1F

0.75

2.5

1.5

3.1

3G3RX-A4007-E1F

1.5

7.5

2.2

9.4

3G3RX-A2015-E1F

1.5

3.8

2.2

4.8

3G3RX-A4015-E1F

2.2

10.5

4.0

12

3G3RX-A2022-E1F

2.2

5.3

4.0

6.7

3G3RX-A4022-E1F

4.0

16.5

5.5

19.6

3G3RX-A2037-E1F

4.0

9.0

5.5

11.1

3G3RX-A4040-E1F

5.5

24

7.5

30

3G3RX-A2055-E1F

5.5

14

7.5

16

3G3RX-A4055-E1F

7.5

32

11

44

3G3RX-A2075-E1F

7.5

19

11

22

3G3RX-A4075-E1F

11

46

15

58

3G3RX-A2110-E1F

11

25

15

29

3G3RX-A4110-E1F

15

64

18.5

73

3G3RX-A2150-E1F

15

32

18.5

37

3G3RX-A4150-E1F

18.5

76

22

85

3G3RX-A2185-E1F

18.5

38

22

43

3G3RX-A4185-E1F

22

95

30

113

3G3RX-A2220-E1F

22

48

30

57

3G3RX-A4220-E1F

30

121

37

140

3G3RX-A2300-E1F

30

58

37

70

3G3RX-A4300-E1F

37

145

45

169

3G3RX-A2370-E1F

37

75

45

85

3G3RX-A4370-E1F

45

182

55

210

3G3RX-A2450-E1F

45

91

55

105

3G3RX-A4450-E1F

55

220

75

270

3G3RX-A2550-E1F

55

112

75

135

3G3RX-A4550-E1F

-

75

149

90

160

3G3RX-B4750-E1F

90

176

110

195

3G3RX-B4900-E1F

110

217

132

230

3G3RX-B411K-E1F

132

260

160

290

3G3RX-B413K-E1F

A Rasmi line filter

200 V

400 V

Model 3G3R_X-_

Leakage

Nom./Max.

Rated current A

Weight
(kg)

Order code

Model 3G3RX-_

Leakage

Nom./Max.

Rated current A

Weight
(kg)

Order code

A2004/A2007/A2015/A2022/A2037

0.7/40 mA

18

2.0

AX-FIR2018-RE

A4004/A4007/A4015/A4022/A4040

0.3/40 mA

10

1.9

AX-FIR3010-RE

A2055/A2075/A2110

0.7/40 mA

53

2.5

AX-FIR2053-RE

A4055/A4075/A4110

0.3/40 mA

30

2.2

AX-FIR3030-RE

A2150/A2185/A2220

1.2/70 mA

110

8.0

AX-FIR2110-RE

A4150/A4185/A4220

0.8/70 mA

53

4.5

AX-FIR3053-RE

A2300

1.2/70 mA

145

8.6

AX-FIR2145-RE

A4300

3/160 mA

64

7.0

AX-FIR3064-RE

A2370/A2450

6/300 mA

250

13.0

AX-FIR3250-RE

A4370

2/130 mA

100

8.0

AX-FIR3100-RE

A2550

6/300 mA

320

13.2

AX-FIR3320-RE

A4450/A4550

2/130 mA

130

8.6

AX-FIR3130-RE

-

B4750/B4900

10/500 mA

250

13.0

AX-FIR3250-RE

B411K/B413K

10/500 mA

320

13.2

AX-FIR3320-RE

A Input AC reactors

3-phase 200 VAC

3-phase 400 VAC

Inverter model 3G3RX-_

Order code

Inverter model 3G3RX-_

Order code

A2004/A2007/A2015

AX-RAI02800100-DE

A4004/A4007/A4015

AX-RAI07700050-DE

A2022/A2037

AX-RAI00880200-DE

A4022/A4040

AX-RAI03500100-DE

A2055/A2075

AX-RAI00350335-DE

A4055/A4075

AX-RAI01300170-DE

A2110/A2150

AX-RAI00180670-DE

A4110/A4150

AX-RAI00740335-DE

A2185/A2220

AX-RAI00091000-DE

A4185/A4220

AX-RAI00360500-DE

A2300/A2370

AX-RAI00071550-DE

A4300/A4370

AX-RAI00290780-DE

A2450/A2550

AX-RAI00042300-DE

A4450/A4550

AX-RAI00191150-DE

B4750/B4900

AX-RAI00111850-DE

B411K/B413K

AX.RAI00072700-DE

A DC reactors

3-phase 200 VAC

3-phase 400 VAC

Inverter model 3G3RX-_

Order code

Inverter model 3G3RX-_

Order code

A2004

AX-RC10700032-DE

A4004

AX-RC43000020-DE

A2007

AX-RC06750061-DE

A4007

AX-RC27000030-DE

A2015

AX-RC03510093-DE

A4015

AX-RC14000047-DE

A2022

AX-RC02510138-DE

A4022

AX-RC10100069-DE

A2037

AX-RC01600223-DE

A4040

AX-RC06400116-DE

A2055

AX-RC01110309-DE

A4055

AX-RC04410167-DE

A2075

AX-RC00840437-DE

A4075

AX-RC03350219-DE

A2110

AX-RC00590614-DE

A4110

AX-RC02330307-DE

A2150

AX-RC00440859-DE

A4150

AX-RC01750430-DE

A2185/A2220

AX-RC00301275-DE

A4185/A4220

AX-RC01200644-DE

A2300

AX-RC00231662-DE

A4300

AX-RC00920797-DE

A2370

AX-RC00192015-DE

A4370

AX-RC00741042-DE

A2450

AX-RC00162500-DE

A4450

AX-RC00611236-DE

A2550

AX-RC00133057-DE

A4550

AX-RC00501529-DE

B4750

AX-RC00372094-DE

B4900

AX-RC00312446-DE

B411K

AX-RC00252981-DE

B413K

AX-RC00213613-DE

A Chokes

Diameter

Description

Order code

21

For 2.2 kW motors or below

AX-FER2102-RE

25

For 15 kW motors or below

AX-FER2515-RE

50

For 45 kW motors or below

AX-FER5045-RE

60

For 55 kW motors or above

AX-FER6055-RE

A Output AC Reactor

200 V

400 V

Model 3G3RX-_

Order code

Model 3G3RX-_

Order code

A2004

AX-RAO11500026-DE

A4004/A4007/A4015

AX-RAO16300038-DE

A2007

AX-RAO07600042-DE

A2015

AX-RAO04100075-DE

A2022

AX-RAO03000105-DE

A4022

AX-RAO11800053-DE

A2037

AX-RAO01830160-DE

A4040

AX-RAO07300080-DE

A2055

AX-RAO01150220-DE

A4055

AX-RAO04600110-DE

A2075

AX-RAO00950320-DE

A4075

AX-RAO03600160-DE

A2110

AX-RAO00630430-DE

A4110

AX-RAO02500220-DE

A2150

AX-RAO00490640-DE

A4150

AX-RAO02000320-DE

A2185

AX-RAO00390800-DE

A4185

AX-RAO01650400-DE

A2220

AX-RAO00330950-DE

A4220

AX-RAO01300480-DE

A2300

AX-RAO00251210-DE

A4300

AX-RAO01030580-DE

A2370

AX-RAO00191450-DE

A4370

AX-RAO00800750-DE

A2450

AX-RAO00161820-DE

A4450

AX-RAO00680900-DE

A2550

AX-RAO00132200-DE

A4550

AX-RAO00531100-DE

B4750

AX-RAO00401490-DE

B4900

AX-RAO00331760-DE

B411K

AX-RAO00262170-DE

B413K

AX-RAO00212600-DE

Note: This table corresponds with HD rating. When ND is used, please choose the reactor for the next size inverter.

B Accessories

Types

Appearance

Description

Order code

Remote digital operator


5 line LCD digital operator with copy function1

3G3AX-OP05

Operator holder (for inside cabinet mounting)

3G3AX-OP05-H-E


LED remote digital operator

3G3AX-OP01

Mounting kit

4X-KITmini

LED digital operator


To be used in combination with communication option boards

3G3AX-OP03

Blind cover


3G3AX-OP05-B-E

Cables


3 m remote digital operator cable

3G3AX-CAJOP300-EE

-

RJ45 to USB connection cable

USB-CONVERTERCABLE

3G3AX-PCACN2

C Option boards

Types

Description

Functions

Order code

Encoder feedback

PG speed controller option card

Phase A,B and Z pulse (differential pulse) inputs (RS-422)

Pulse train position command input (RS-422)

Pulse monitor output (RS-422)

PG frequency range: 100 kHz max

3G3AX-PG

Communication option board

DeviceNet option card

Used for running or stopping the inverter, setting or referencing parameters, and monitoring output frequency, output current ... through communications with the host controller

3G3AX-RX-DRT

PROFIBUS option card

3G3AX-RX-PRT

EtherCAT option card

3G3AX-RX-ECT

CompoNet option card

3G3AX-RX-CRT

MECHATROLINK-II option card

3G3AX-RX-MRT

I/O option

Extra input/output option card

8 digital inputs, 8 digital outputs, 4 analog inputs, 1 analog output

3G3AX-EIO21-ROE

D DC Supply with Regenerative Active Front End

Max. input power kW

Order code

Stand-alone

Kit

Regenerative DC bus supply

Low harmonic filter

EMC filter

30

RFE-B3 30-400-50-230-A-RVE

RHF-RA 43-400-50-20-A-RVE

RFI-RA 12-RVE

RFE-B3 30-400-50-230-IF-RVE

45

RFE-B3 45-400-50-230-A-RVE

RHF-RA 72-400-50-20-A-RVE

RFE-B3 45-400-50-230-IF-RVE

60

RFE-B3 60-400-50-230-A-RVE

RHF-RA 86-400-50-20-A-RVE

RFI-RA 23-RVE

RFE-B3 60-400-50-230-IF-RVE

80

RFE-B3 80-400-50-230-A-RVE

RHF-RA 144-400-50-20-A-RVE

RFE-B3 80-400-50-230-IF-RVE

100

RFE-B3 100-400-50-230-A-RVE

RFI-RA X5-RVE

RFE-B3 100-400-50-230-IF-RVE

125

RFE-B3 125-400-50-230-A-RVE

RHF-RA 180-400-50-20-A-RVE

RFI-RA X6-RVE

RFE-B3 125-400-50-230-IF-RVE

150

RFE-B3 150-400-50-230-A-RVE

RHF-RA 217-400-50-20-A-RVE

RFE-B3 150-400-50-230-IF-RVE

200

RFE-B3 200-400-50-230-A-RVE

RHF-RA 304-400-50-20-A-RVE

RFE-B3 200-400-50-230-IF-RVE

Note: The DC Supply with Regenerative Active Front End kit includes a Regenerative DC bus supply, low harmonic filter and EMC filter.

D Regenerative Braking unit

Low Duty applications (50%)

High Duty applications

Max. regenerative power kW

Order code

Max. regenerative power kW

Order code

8

RLD-E0 8-400-50-0-A-RVE

7

RHD-B0 7-400-50-0-A-RVE

12

RLD-E0 12-400-50-0-A-RVE

13

RHD-B0 13-400-50-0-A-RVE

16

RLD-E0 16-400-50-0-A-RVE

18

RHD-B0 18-400-50-0-A-RVE

20

RLD-E0 20-400-50-0-A-RVE

24

RHD-B0 24-400-50-0-A-RVE

24

RLD-E0 24-400-50-0-A-RVE

30

RHD-B0 30-400-50-230-A-RVE

32

RLD-E0 32-400-50-0-A-RVE

50

RHD-B0 50-400-50-230-A-RVE

40

RLD-E0 40-400-50-0-A-RVE

70

RHD-B0 70-400-50-230-A-RVE

48

RLD-E0 48-400-50-0-A-RVE

100

RHD-B0 100-400-50-230-A-RVE

58

RLD-E0 58-400-50-0-A-RVE

125

RHD-B0 125-400-50-230-A-RVE

80

RLD-E0 80-400-50-0-A-RVE

150

RHD-B0 150-400-50-230-A-RVE

95

RLD-E0 95-400-50-0-A-RVE

116

RLD-E0 116-400-50-0-A-RVE

140

RLD-E0 140-400-50-0-A-RVE

170

RLD-E0 170-400-50-230-A-RVE

200

RLD-E0 200-400-50-230-A-RVE

D Braking unit, braking resistor unit

Inverter

Braking resistor unit

Voltage

Max. motor

kW

Inverter 3G3RX_

Braking unit

AX-BCR_

Connectable min.

resistance Ω

Inverter mounted type (3% ED, 10 sec max.)

Braking torque %

External resistor 10% ED

10 sec max. for built-in

5 sec max. for braking unit

Braking torque %

3-phase

Order code

Resist Ω

Order code

Resist Ω

200 V
(single-/three-phase)

0.55

A2004

Built-in

50

AX-REM00K1200-IE

200

180

AX-REM00K1200-IE

200

180

1.1

A2007

100

AX-REM00K2070-IE

70

200

1.5

A2015

35

AX-REM00K2070-IE

70

140

AX-REM00K4075-IE

75

130

2.2

A2022

90

AX-REM00K4035-IE

35

180

4.0

A2037

AX-REM00K4075-IE

75

50

AX-REM00K6035-IE

35

100

5.5

A2055

16

AX-REM00K4035-IE

35

75

AX-REM00K9020-IE

20

150

7.5

A2075

10

55

AX-REM01K9017-IE

17

110

11.0

A2110

AX-REM00K6035-IE

35

40

AX-REM02K1017-IE

17

75

15.0

A2150

7.5

AX-REM00K9017-IE

17

55

AX-REM03K5010-IE

10

95

18.5

A2185

AX-REM03K5010-IE

10

75

AX-REM19K0008-IE

8

95

22.0

A2220

5

65

80

30.0

A2300

2035090-TE

4

-

AX-REM19K0006-IE

6

80

37.0

A2370

6

60

45.0

A2450

2070130-TE

2.8

2 x AX-REM19K0006-IE

3

105

55.0

A2550

3

85

400 V
(three-phase)

0.55

A4004

Built-in

100

AX-REM00K1400-IE

400

200

AX-REM00K1400-IE

400

200

1.1

A4007

200

200

1.5

A4015

AX-REM00K1200-IE

200

190

AX-REM00K2200-IE

200

190

2.2

A4022

AX-REM00K2200-IE

200

130

AX-REM00K5120-IE

120

200

4.0

A4040

70

AX-REM00K2120-IE

120

Product Datasheet

Electrica Online Product Datasheet Prepared from the current product description, catalog data and structured technical attributes.
