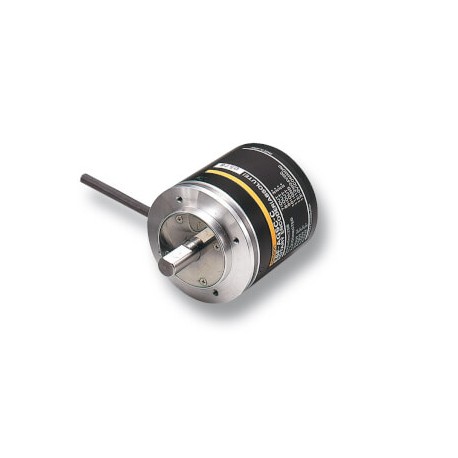

OMRON E6F-AB3C 360 2M E6F-AB3C 360 2M E6F 1001A E6FAB3C360 OMRON All 360cpr BCD NPN 5-12vdc, Cable 2m View larger
Images are for illustrative purposes only. Please refer to data sheet for details

E6F-AB3C 360 2M E6F 1001A E6FAB3C360 OMRON All 360cpr BCD NPN 5-12vdc, Cable 2m

E6F-AB3C 360 2M

E6F 1001A

E6FAB3C360

OMRON

1 Pcs.

All 360cpr BCD NPN 5-12vdc, Cable 2m Absolute 360cpr BCD NPN 5-12Vdc Cable 2m Encoder, absolute, 360ppr, 10-bit, 5-12 VDC, BCD output, 2m cable

Automation > Rotary encoder
E6F

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
Features

Rugged housing rotary encoder

The E6F family of dia 60mm rotary encoders features a rugged housing.

  • Stronger shaft and higher durability (120 N in radial direction and 50 N in thrust direction) than previous E6F Encoders
  • Drip-proof construction meets IP64F standards
  • High-resolution models (1024 pulses max. per revolution)
  • Faster response for high-speed control applications (grey code: 20 kHz)

Ordering information

Size dia. in mm

Power supply voltage

Output form

Output code

Resolution
(pulses/revolution)

Connection method

Order code

60

12 to 24 VDC

NPN open collector

BCD

360

Pre-wired

E6F-AB5C

Connector type1

E6F-AB5C-C

Gray code

256, 360, 720, 1,024

Pre-wired

E6F-AG5C

PNP open collector

BCD

360

Pre-wired

E6F-AB5B

Gray code

256, 360, 720, 1,024

Pre-wired

E6F-AG5B

1.For extension cables order E69-DF5 (5M) or E69-DF10 (10M).
