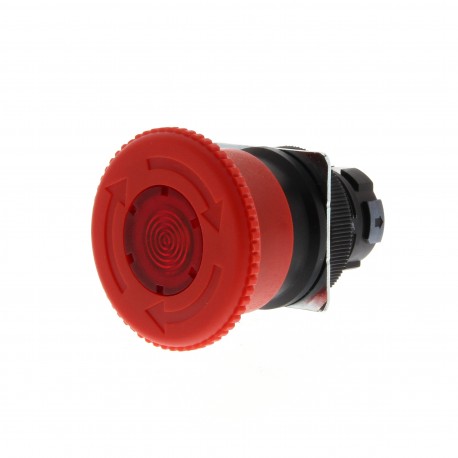

A22EL-M A22E2001C A22ELM OMRON Mushroom lighting Push-Turn D40mm
A22EL-M
A22E2001C
A22ELM
OMRON
10 Pcs.
Mushroom lighting Push-Turn D40mm
Emergency stop switch, illuminated, 40mm dia, push-lock/turn-reset, IP65
Automation > Front element for mushroom push-button
Others
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
More info
▲- Direct opening mechanism to open the circuit when the contact welds
- With a latching mechanism to prevent operating errors
- Lock lever for easily mounting and removing the unit
- Use 25-dia. ring to install in 25-dia. panel cutouts.*
- In a model equipped with Lock-lever-linked contact function, the improper installation of the switch unit can be detected. (A22NE-PD)
Accessories
Ordering information
Commonto Screw Terminal Block types (A22E)/Push-in Plus Terminal Blocktypes (A22NE-P/A22NE-PD) (Order Separately)
| Item | Appearance | Classification | Remarks | Order code | |
|---|---|---|---|---|---|
| Legend Plates for Emergency Stop |  | 60-dia. black letters on yellowback-ground | Used in combination with the washer rubber when the level of protection is to be met between panels. | A22Z-3466-1 | |
| 90-dia. black letters on yellowback-ground | A22Z-3476-1 | ||||
| 60-dia. black letters on yellowbackground | Cannot be used in combination with the Control Boxes. Used in combination with the washer rubber when the level of protection is to be met between panels. | A22Z-3466-2 | |||
| Hole Plug |  | Round | Used for covering the panel cutouts for future panel expansion. Black color. | A22Z-3530 | |
| Connectors |  | Applicable cable diameter | 7 to 9 dia. | Plastic connector used to extenda cable from the Switch Box. | A22Z-3500-1 |
| 9 to 11 dia. | A22Z-3500-2 | ||||
| 25-dia. Ring |  | – | Use when mounting to a panel with a 25-dia. hole. Material: Rubber, Level of protection: IP65 2 Switches with an IP69K degree of protectiondo not support the 25-dia. | A22Z-R25 | |
| 30-dia. Resin Attachment |  | – | Use when mounting to a panel with a 30-dia. hole. A rubber washer (A22Z-R) is provided with the product. | A22Z-A30 | |
| Lock Ring |  | – | The body is equipped with a Lock Ring. This Lock Ring is used when a more secure lock feature is -required. | A22Z-3360 | |
| Tightening Tool | – | Used for tightening the mounting ring from the back side of the panel, and for removing the cap in lighted models. | A22Z-3905 | ||
| E-stop Shroud for EMO, Yellow |  | – | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY OFF come as a set. Use with an A22E Emergency Stop Switch (for emergency shutoff) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG1 | |
| E-stop Shroud for EMO, Yellow |  | Legend plate for EMERGENCY OFF is not -included. | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2 compatibility. Use with an A22E with EMO indication. (for -emergency off) 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG10 | |
| E-stop Shroud for EMS, White |  | – | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY STOP come as a set. Use with an A22E Emergency Stop Switch. (for emergency stop) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG1-W | |
| E-stop Shroud for EMS, White |  | Legend plate for EMERGENCY STOP is not -included. | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2 compatibility. Use with an A22E with EMS indication. (for emergency stop) 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG10-W | |
| E-stop Shroud, Yellow |  | Spacer Unit is not included. | SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI S2-compatible Shroud. (for emergency shutoff) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. Use together with an A22E Emergency Stop Switch. | A22Z-EG2 | |
| One Spacer Unit is included. | A22Z-EG21 | ||||
| Two Spacer Units are included. | A22Z-EG22 | ||||
| E-stop Shroud for EMO, Yellow |  | – | Provides SEMI-S2/SEMATECH APPLICATION GUIDE FOR SEMI-S2 compatibility. The SEMI-S2-compatible Shroud and legend plate for EMERGENCY OFF come as a set. Use with an A22E Emergency Stop Switch. (for emergency shutoff) 2 ,These Shrouds are for use with the equipment only that conforms to SEMI standards. Do not use them for any other applications (e.g. emergency stop switches for machines or devices such as Machine tools, Printing presses, Industrial machinery, etc). 2 The Control Boxes cannot be used in combination with the A22Z-3476-1 Legend Plates for Emergency Stop or the A22Z-EG⬜ E-stop Shrouds. | A22Z-EG3 | |
| Rubber Packing |  | – | Used together with accessories. Contains 10 packings. | A22Z-R | |
Note:
- Accessories forA22Z-EG1: one “EMERGENCY OFF” label, two rubber packings, and onelock ring
- Accessories for A22Z-EG10: one rubber packing and one lock ring(without label)
| Feature Name | Feature Value |
|---|---|
| Colour front ring (EF002429) | Black |
| Type of button (EF001546) | High |
| Colour button (EF000190) | Red |
| Degree of protection (NEMA) (EF011959) | Other |
| Degree of protection (IP) (EF005474) | IP65 |
| Construction type lens (EF006253) | Round |
| Material front ring (EF005972) | Plastic |
| Unlocking method (EF001403) | Turn-release |
| With front ring (EF006014) | Yes |
| Spring-return (EF001407) | No |
| Switching function latching (EF007447) | Yes |
| Suitable for emergency stop (EF001433) | Yes |
| Suitable for lighting (EF001142) | Yes |
| With lighting (EF003829) | Yes |
| Height opening (EF004778) | 22.3 mm |
| Width opening (EF004565) | 22.3 mm |
| Hole diameter (EF000079) | 22 mm |
| Diameter cap (EF001423) | 40 mm |
