> OMRON > Safety > Others > A16E2004D

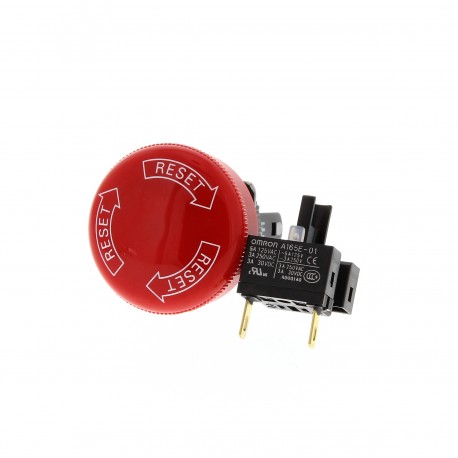

OMRON A165E-S A165E-S A16E2004D A165ES OMRON Emergency stop button 16mm D30mm View larger
Images are for illustrative purposes only. Please refer to data sheet for details

A165E-S A16E2004D A165ES OMRON Emergency stop button 16mm D30mm

A165E-S

A16E2004D

A165ES

OMRON

20 Pcs.

Emergency stop button 16mm D30mm Emergency stop switch, non-illuminated, 30mm dia, push-lock / turn-reset

Automation > Front element for mushroom push-button
Others

Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.

Request a Quote

Pricing and availability are confirmed for each enquiry. Add your required quantity to begin.

No account, online checkout or payment is required.

More info

▲
  • Direct opening mechanism with minimum contact separation of 3mm
  • Safety lock mechanism prevents misuse
  • Short mounting depth
  • Modular construction; easy installation using snap-in switch

Specifications & ordering info

Ordering information

Switches

Rated voltage

Pushbutton color

Pushbutton size

Terminal

Contact

Order code

Standard load
(125 VAC at 5 A,
250 VAC at 3 A,
30 VDC at 3 A)

LED

24 VDC

Red

30 dia.

Solder terminal

SPST-NC

A165E-LS-24D-01

DPST-NC

A165E-LS-24D-02

None

-

SPST-NC

A165E-S-01

DPST-NC

A165E-S-02

TPST-NC

A165E-S-03U

LED

24 VDC

40 dia.

SPST-NC

A165E-LM-24D-01

DPST-NC

A165E-LM-24D-02

None

-

SPST-NC

A165E-M-01

DPST-NC

A165E-M-02

TPST-NC

A165E-M-03U

Note: The above models have a surface indication of “RESET.” Models with “STOP” indication are also available. For further information, contact your Omron representative.

Accessories (order separately)

Item

Type

Precautions

Order code

Yellow plate

Yellow, 45 dia.

Use this as an emergency stop nameplate.

A16Z-5070

Panel plug

Round

Used for covering the panel cutouts for future panel expansion.

A16ZT-3003

Tightening tool

-

Useful for repetitive mounting. Be careful not to tighten excessively.

A16Z-3004

Extractor

-

Convenient for extracting the switch and lamp.

A16Z-5080

Specifications

Rated voltage

Resistive load

A165E series

A165E_-U series

125 VAC

5 A

1 A

250 VAC

3 A

0.5 A

30 VDC

3 A

1 A

Minimum applicable load

150 mA at 5 VDC

1 mA at 5 VDC

Features

Characteristics

Operating force (OF) max.

14.7 N

Releasing force (RF) min.

0.1 N·m

Pretravel (PT)

3.5±0.5 mm
(3±0.5 mm In case of A165E_U series)

Item

Emergency stop switch

Allowable operating frequency

Mechanical

20 operations/minute max.

Electrical

10 operations/minute max.

Insulation resistance

100 MΩ min. (at 500 VDC)

Dielectric strength

1,000 VAC, 50/60 Hz for 1 min between terminals of same polarity
2,000 VAC, 50/60 Hz for 1 min between terminals of different polarity and also between each terminal and ground
1,000 VAC, 50/60 Hz for 1 min between lamp terminals1

Durability

Mechanical

100,000 operations min.

Electrical

100,000 operations min.

Ambient temperature

Operating: -10 to 55°C (with no icing or condensation)
Storage: -25 to 65°C (with no icing or condensation)

Protection against electric shock

Class II

1.LED not mounted. Test them with the LED removed.


ETIM for 153220 Low-voltage industrial controls and switchgear (EC001038)
Feature Name Feature Value
Colour front ring (EF002429) Other
Type of button (EF001546) High
Colour button (EF000190) Red
Degree of protection (NEMA) (EF011959) Other
Degree of protection (IP) (EF005474) IP65
Construction type lens (EF006253) Round
Material front ring (EF005972) Plastic
Unlocking method (EF001403) Turn-release
With front ring (EF006014) Yes
Spring-return (EF001407) No
Switching function latching (EF007447) No
Suitable for emergency stop (EF001433) Yes
Suitable for lighting (EF001142) No
With lighting (EF003829) No
Height opening (EF004778) 16 mm
Width opening (EF004565) 16 mm
Hole diameter (EF000079) 16 mm
Diameter cap (EF001423) 30 mm
