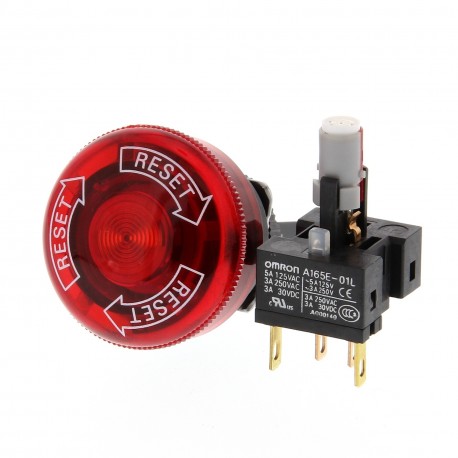

A165E-LS-24D-01 A16E7003C A165ELS24D01 OMRON Emergency stop button 16mm SPST-NC LED
A165E-LS-24D-01
A16E7003C
A165ELS24D01
OMRON
5 Pcs.
Automation > Emergency stop complete
Others
Product condition, packaging, certifications and applicable manufacturer warranty terms are confirmed with the quotation.
Request a Quote
Pricing and availability are confirmed for each enquiry. Send this part and we will reply with price and lead time.
Request QuoteProduct Overview
Omron A165E-LS-24D-01 A16E7003C A165ELS24D01 OMRON Emergency stop button 16mm SPST-NC LED is an emergency stop button utilized in safety circuits to immediately halt hazardous industrial processes when safety is compromised. These safety components provide reliable switching action to cut power supply to drives and machinery during unexpected events. Pricing, availability and lead time are confirmed per enquiry through an RFQ.
- LED: 24 VDC
- DPST-NC: A165E-LS-24D-02
- DPST-NC: A165E-S-02
- TPST-NC: A165E-S-03U
- LED: 24 VDC
- DPST-NC: A165E-LM-24D-02
- DPST-NC: A165E-M-02
- TPST-NC: A165E-M-03U
- Yellow plate: Yellow, 45 dia.
- Panel plug: Round
- 125 VAC: 5 A
- 250 VAC: 3 A
- 30 VDC: 3 A
- Minimum applicable load: 150 mA at 5 VDC
- Operating force (OF) max.: 14.7 N
- Releasing force (RF) min.: 0.1 N·m
More info
▲- Direct opening mechanism with minimum contact separation of 3mm
- Safety lock mechanism prevents misuse
- Short mounting depth
- Modular construction; easy installation using snap-in switch
Specifications & ordering info
Ordering information
Note: The above models have a surface indication of “RESET.” Models with “STOP” indication are also available. For further information, contact your Omron representative.
Accessories (order separately)
Used for covering the panel cutouts for future panel expansion. | |||
Useful for repetitive mounting. Be careful not to tighten excessively. | |||
Specifications
1,000 VAC, 50/60 Hz for 1 min between terminals of same polarity | ||
Operating: -10 to 55°C (with no icing or condensation) | ||
